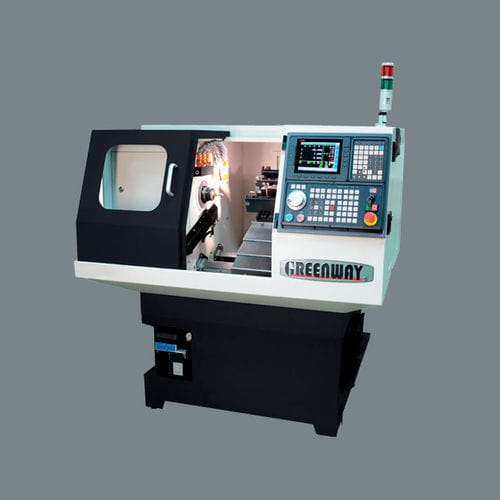

CNC lathe HC-20Nhorizontalwith linear motor
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Options and accessories
- with linear motor
- Diameter
150 mm
(5.91 in)- Spindle speed
4,000 rpm, 5,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1)- Maximum part length
60 mm, 160 mm
(2 in, 6 in)- Maximum cutting diameter
85 mm
(3 in)- Axe X
220 mm
(9 in)- Axe Z
185 mm
(7 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
3.9 kW
(5.3 hp)- Coolant capacity
90 l
(24 gal)- Overall lenght
1,450 mm
(57 in)- Overall width
1,250 mm
(49 in)- Overall height
1,650 mm
(65 in)- Weight
1,050 kg
(2,315 lb)
Description
Our main economical machine type with high processing efficiency, the price is more affordable than swiss type, it's an entry models for CNC lathe.
The linear guideway configuration is suitable for light cutting and processing speed, which can greatly increase the customer's production efficiency.
The small size of the machine platform can save the factory space.
Optional Follow rest with fixed guide bush and Long workpiece parts catcher, increase holding material function, can process long workpieces.
X/Z-axis servo motor
KW
1
X-axis Ball screw
mm - Ø28 pitch10
Z-axis Ball screw
mm - Ø28 pitch10
Bore of spindle
mm - Ø22
Collet type
-- - YB20
Max. bar feeding dia
mm - Ø20
O.D. turning tool size
mm - 口20
I.D. turning tool size
mm - Ø20
Cutting coolant pump
HP - 1/4
