CNC lathe JYN-42
horizontalA2-510 tools

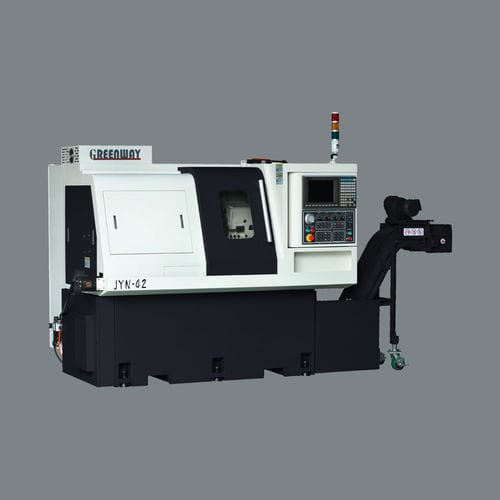

CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools - image - 2
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools - image - 3
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools - image - 4
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools - image - 5
CNC lathe - JYN-42 - Jarng Yeong Enterprise Co., Ltd. - horizontal / A2-5 / 10 tools - image - 6
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Spindle mount
A2-5
Number of tool stations
10 tools
Applications
heavy-duty, for long workpieces
Performance
high-precision, powerful, high-productivity
Associated function
grinding
Diameter

400 mm
(15.75 in)

Spindle speed

Min.: 50 rpm
(314.159 rad.min-1)

Max.: 4,500 rpm
(28,274.334 rad.min-1)

Maximum part length

310 mm
(12 in)

Maximum cutting diameter

210 mm
(8 in)

Bar capacity

42 mm
(2 in)

Axe X

250 mm
(10 in)

Axe Z

400 mm
(16 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

7.5 ch, 10 ch
(7.5 hp, 10 hp)

Coolant capacity

120 l
(32 gal)

Overall lenght

2,050 mm
(81 in)

Overall width

1,500 mm
(59 in)

Overall height

1,700 mm
(67 in)

Weight

2,450 kg
(5,401 lb)

Description

Optional tailstock, suitable for processing long and heavy workpiece. New Optional Accessories:Grinding device & Automatic sand-rubbed finish device, to follow next grinding process to improve productivity and high precision production. Hydraulic chuck inch 6" Collet chuck -- - C44 / 173E Bore of spindle mm - Ø45 rvo motor KW - 1 O.D. turning tool size mm - 口20 I.D. turning tool size mm - Ø20 Powerful coolant pump HP - 1
