Commercial scale M2400

electronicplatformkilogram

Overview

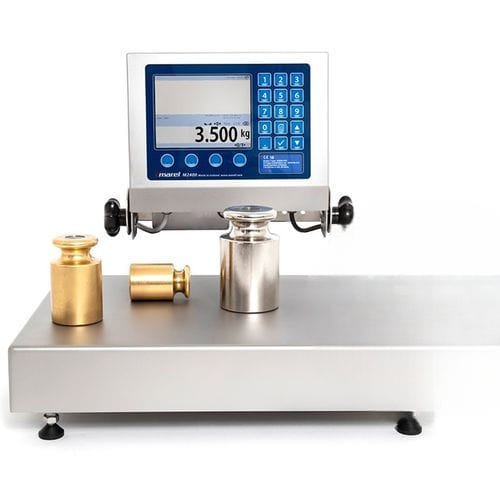

The M2400 bench scale from JBT Marel is a certifiable industrial weighing and packaging solution designed for versatile use in food processing and industrial environments. It supports integration with JBT Marel and Innova software, printers and scanners, and offers custom programming options to control external devices.

Performance and design
Equipped with a programmable indicator for under- and over-weight detection, the M2400 registers weights in 0.5–1.0 s and delivers accuracy down to 0.5 g depending on the model. The AISI 316 stainless steel hygienic construction with smooth, rounded edges minimizes trapping areas and resists harsh washdown cleaning.

Advanced digital control
The scale integrates into simple and complex processing lines to enable advanced weighing, monitoring and production control. Connectivity and communication options include Fast 10/100 Mbit Ethernet, 2 x RS-232, 2 x USB 2.0 (internal) and four built-in I/O for automation and external device control.

Features

• Environmental protection: IP67 / IP69K for washdown environments
• Weighing speed: capable of registering weights in 0.5–1.0 seconds
• Programmable indicator: 5.7” TFT 24-bit color display, 640 x 480 px
• Weighing capacity up to 300 kg; accuracy to 0.5 g (model dependent)
• Platform dimensions available from 250x178 mm to 500x600 mm; wall-mounted version available
• Connectivity: Fast 10/100 Mbit Ethernet, 2 x RS-232 (1200–115200 Baud), 2 x USB 2.0 (internal)
• Four built-in I/O inputs/outputs for integration with external devices
• Power options: 24 VDC or mains 110–230 VAC

Technical specifications

• Model: M2400
• Indicator outer dimensions (WxHxD without mounting): 314 x 105 x 226 mm — Weight: 2.3 kg
• Construction: AISI 316 stainless steel
• Display: 5.7” TFT 24-bit color, 640 x 480 px, LED backlight
• Response time: registers weights in 0.5–1.0 s
• Connectivity: 2 x RS-232 (1200–115200 Baud), 2 x USB 2.0 (internal), Fast 10/100 Mbit Ethernet
• Power options (indicator): 24 VDC, 0.35 A or mains 110–230 VAC, 0.38 A, 50–60 Hz
• Platform versions (mm): PL1000 250x178; PL2020 246x296; PL2062 292x242; PL3020 296x396; PL4020 400x550; PL4026 400x600; PL5020 500x600
• Weighing ranges / example accuracies: 1.5–3 kg (0.5–1 g); 3–6 kg (1–2 g); 6–15 kg (2–5 g); 15–30 kg (5–10 g); 30–60 kg (10–20 g); 60–150 kg (20–50 g); 150–300 kg (50–100 g)
