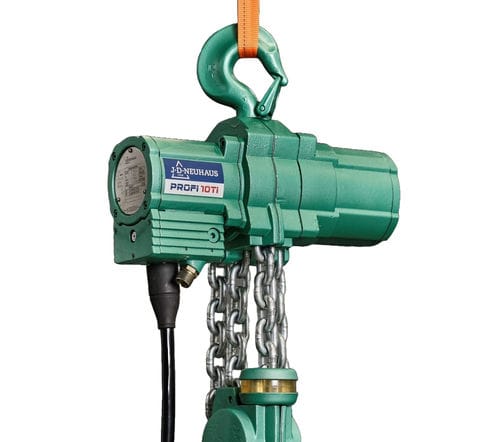

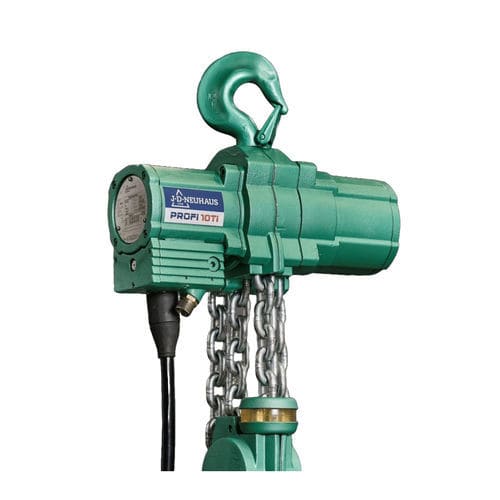

Pneumatic chain hoist Air Hoists PROFI
heavy-dutylow headroomexplosion-proof

pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
pneumatic chain hoist
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Other characteristics
heavy-duty, low headroom, explosion-proof
Lifting height

3 m (9'10")

Capacity

Max.: 2 t (2.2 us ton)

Min.: 0.2 t (0.2 us ton)

Speed

Max.: 42,000 mm/min (27.6 in/s)

Min.: 2,500 mm/min (1.6 in/s)

Description

JDN Air Hoist PROFI JDN Air Hoist PROFI Series are superior in all places where safety has priority. The PROFI Series scores well with its 100 % duty rating and explosion protection as standard. This important advantage ensures JDN Air Hoists are especially suitable for applications in hazardous areas. JDN Air Hoists PROFI Series are very robust and therefore suitable for tough industrial applications even in continuous working processes. Air Hoists PROFI Standard Features • - suitable for application in hazardous areas (ATEX) • - sensitive infinitely variable speed control for the precise positioning of loads • - easy operation • - suitable for lube-free operation • - 100% duty cycles – no downtimes • - frequent switching and extended duty cycles • - sound absorption • - insensitive to dust, humidity and temperatures ranging from -20°C up to +70°C For traversing loads there are different trolleys to meet your special demands. The Advantages at Glance Strong – Fast – Silent High performance Air Hoists with more efficiency by reliability plus high lifting and lowering speeds. With low sound emissions and high Level of Safety Integrated emergency stop switch from 1 t upwards with overload protection. Oil-Free Operation Air Hoist Patented, permanent motor lubrication during operation, using a high-performance grease. No additional motor lubrication required for efficient operation. Patented Motor-Brake System For operation with low maintenance and little wear with increased safety. Based on the proven design of the JDN Mini Series.
