Manual winch GS serieswire ropegearwall-mounted
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- wire rope
- Other characteristics
- gear, wall-mounted
- Capacity
125 kg, 300 kg, 500 kg, 1,000 kg
(275.6 lb, 661.4 lb, 1,102.3 lb, 2,204.6 lb)- Cable diameter
4 mm, 5 mm, 6 mm, 9 mm
(0.16 in, 0.2 in, 0.24 in, 0.35 in)- Weight
4 kg, 9.5 kg, 10.5 kg, 28.5 kg
(8.818 lb, 20.944 lb, 23.149 lb, 62.832 lb)
Description
Space-saver profile and fold-back crank are ideal for installation and operation in confined spaces.
Bearings
Effective use of needle roller bearings and bushings minimizes friction. This ensures ease of operation, and as a result the winch runs smooth, increasing life and reducing cranking effort.
Models

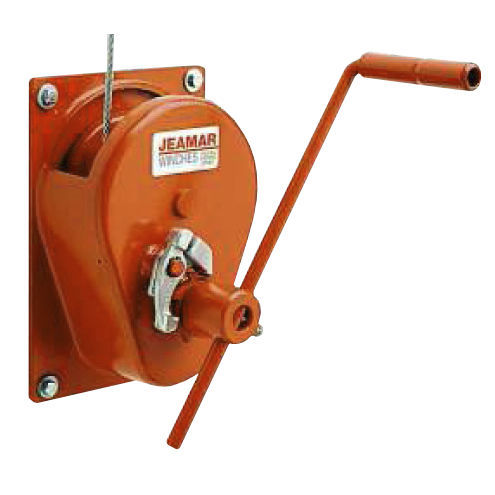

Model shown is GS 660 and 1100. Models GS 275, 2200 and 4400 differ slightly.
Automatic Brake
The winch is supplied with a detachable handle. The braking system is applied automatically when the operator stops turning the crank and the load is held securely.
