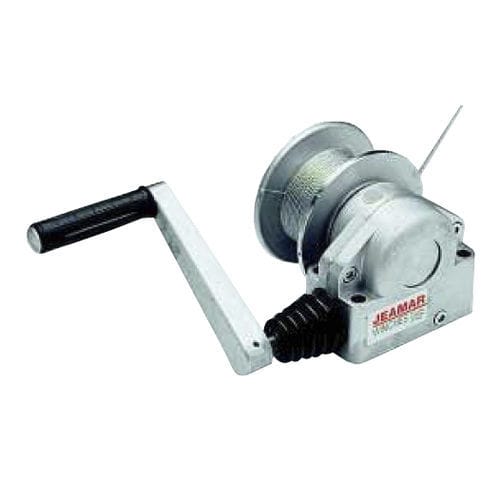

Manual winch CMC serieswire ropecompactgear
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- wire rope
- Other characteristics
- compact, gear
- Capacity
727 kg, 1,091 kg
(1,602.8 lb, 2,405.2 lb)- Weight
7 kg
(15.432 lb)
Description
Free spooling is ideal for getting rope out quickly under no-load conditions.
Totally Enclosed Gears
A sealed oil bath ensures constant lubrication and quiet operation.
Compact
Space-saver profile is ideal for installation and operation in confined spaces.
Automatic Brake
The brake employs an under-driven worm drive to the rope drum. Operated in a clockwise direction, the initial rotation engages the worm pinion and the wormwheel. The action is similar to a screw thread being engaged. Brakes respond automatically when the handle is released. Recoil is prevented and the load is held securely.
