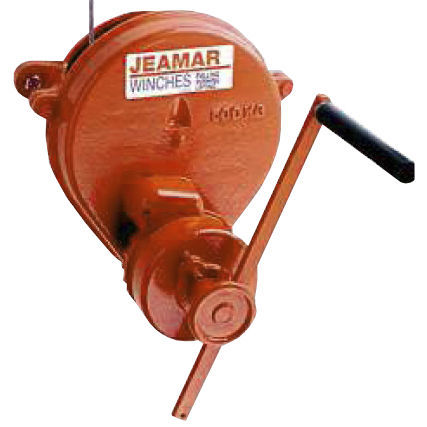

Manual winch CFF serieswire ropegear
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- wire rope
- Other characteristics
- gear
- Capacity
300 kg, 500 kg, 1,000 kg, 1,500 kg
(661.4 lb, 1,102.3 lb, 2,204.6 lb, 3,306.9 lb)- Cable diameter
5 mm, 6 mm, 9 mm, 11 mm
(0.2 in, 0.24 in, 0.35 in, 0.43 in)- Weight
34 kg, 50 kg, 87 kg, 110 kg
(74.957 lb, 110.231 lb, 191.802 lb, 242.508 lb)
Description
The payout speed is variable up to a predetermined maximum. It is under the full control of the operator at all times. When the handle is released, the holding brake automatically goes on and the load is held.
Automatic Brake
The brake mechanism uses a split-shoe brake acting against a cylindrical drum. Counterclockwise rotation of the handle releases the brake by removing the axial pressure at the conical faces. The load begins to fall and the pivoted masses swing out under centripetal acceleration and reapply the brake. Releasing the handle applies the brake for positive holding of the load.
High Rope-to-Drum Ratio
Rope life is substantially increased, with drum diameters, a minimum of 20 times the diameter of the rope.
Fully Enclosed Gears
All gears are fully enclosed, increasing operational protection and making the winch ideal for use in adverse conditions.
Catalogs
No catalogs are available for this product.
See all of Jeamar Winches‘s catalogs
