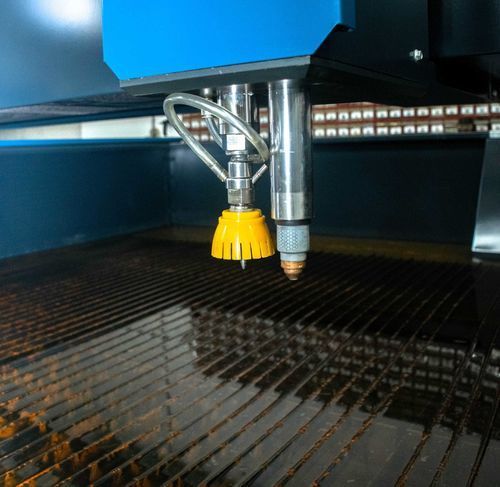

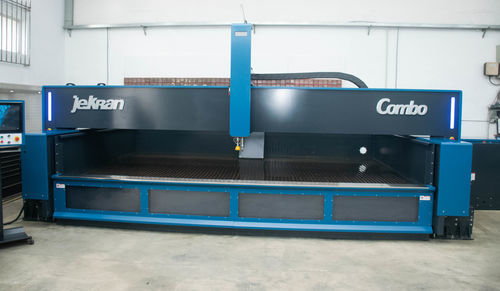

Introducing the Combo machine — a hybrid dual-nozzle cutting platform integrating a waterjet head and a plasma head on a single gantry. Engineered for mixed-material production, the Combo supports high-speed plasma cutting and precision, heat-free waterjet cutting across metals, alloys, composites and layered materials. The design emphasizes integrated dual-nozzle operation and compact workspace footprint.

Key Features

• Hybrid dual-mode cutting system combining waterjet and plasma technologies for flexible production workflows.
• Independent nozzle control permitting simultaneous or selective operation of waterjet and plasma heads.
• Adaptive Material Intelligence with sensors and controls that detect material type and thickness and adjust cutting parameters automatically.
• Seamless mode transition enabling waterjet detailing and plasma rough cutting within the same program.
• High-precision mechanical path control for repeatable results in advanced fabrication tasks.

Tables: Models and Technical Matrix

Model | Models available | X-axis travel (mm) | Y-axis travel (mm) | Z-axis travel (mm) | Max. speed (m/min) | Linear Accuracy (mm) | Repeatability (mm) | Pump/Unit/Spindle Motor | Footprint (m)*
Combo | 4021-Combo | 4100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 8.5x3.4
Combo | 6021-Combo | 6100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 10.5x3.4

Tables: Pump / Direct Drive Options

Model / Option | Model 22 Direct Drive | Model 30 Direct Drive
Electric Servo Motor Power | 30 HP (22 kW) | 40 HP (30 kW)
Efficiency | >= 90% | >= 90%
Output Pressure PSI | 58,000 psi | 58,000 psi
Output Pressure Bar | 4000 Bar | 4000 Bar
Orifice & Flow Rate | 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) | 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
Footprint LxWxH (pump unit example) | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm) | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm)

Pump & Plasma Options

Available waterjet pump choices are Model 22 (22 kW / 30 HP) and Model 30 (30 kW / 40 HP) direct-drive pumps, rated up to 58,000 psi (4,000 bar). Plasma units are available from Hypertherm or GYS. Orifice and flow combinations support different cut qualities and material types.

Performance & Accuracy

The Combo provides linear accuracy of ±0.03 mm and repeatability of ±0.02 mm. Maximum traverse speeds reach up to 25 m/min depending on model and configuration. Adaptive sensors tune cutting parameters for conductive and non-conductive materials.

Use Cases

Suited to fabrication environments requiring both high-speed metal cutting and fine, heat-free cuts on composites or layered assemblies. Typical applications include precision metalworking, bespoke fabrication and mixed-material production runs.

Footnote

*Footprint dimensions are indicative. HP pump, bulk hopper, garnet removal structure and control console can be positioned to match available workspace.

Technical specifications

• Commercial name: Combo
• Models available: 4021-Combo, 6021-Combo
• X-axis travel: 4100 mm (4021), 6100 mm (6021)
• Y-axis travel: 2100 mm
• Z-axis travel: 200 mm
• Max. speed: 25 m/min
• Linear accuracy: ±0.03 mm
• Repeatability: ±0.02 mm
• Pump options: Model 22 (30 HP / 22 kW) or Model 30 (40 HP / 30 kW)
• Output pressure: up to 58,000 psi / 4,000 bar
• Orifice & flow: 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) and 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
• Plasma units: Hypertherm or GYS
• Footprint examples: 8.5 x 3.4 m (4021 layout), 10.5 x 3.4 m (6021 layout)
