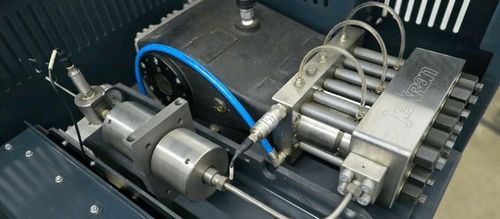

Plunger pump 4000

waterwith electric motorstationary

Overview
Experience the next generation of waterjet power with the stand-alone Direct Servo Drive 4000 Pump engineered for OEM waterjet systems. Delivers the same cutting speed and thrust as a hydraulic intensifier while reducing electrical consumption up to 50%. Runs continuous, pulsation-free up to 4000 bar (58,000 psi) with whisper-quiet operation, low maintenance and extended service intervals.

Key benefits

• Up to 50% lower electrical energy consumption compared to hydraulic intensifiers.
• Whisper-quiet operation with near-silent servo motor design (no hydraulic shock or high-decibel clatter).
• Continuous duty at 4000 bar for 24/7 operation without heat-soak or duty-cycle limits.
• Precision flow control with ±0.5% repeatability for consistent kerf and edge quality.
• Small footprint and OEM-ready electronics for easy machine integration.
• Built-in diagnostics including real-time pressure, temperature and vibration monitoring; supports remote firmware updates.

Operational highlights

• Adaptive flow tuning: intelligent servo control continuously adjusts pressure and water flow in real time to maximize abrasive efficiency and surface finish across a wide range of materials.
• Pulsation-free flow delivers smoother, more consistent cuts and optimized abrasive usage.
• Designed for OEM integration with embedded control interfaces (EtherCAT, Modbus TCP/IP and analog/digital I/O) for plug-and-play connection to existing controllers or PLCs.

Key Features

• Up to 50% lower energy draw while maintaining equivalent cutting performance to intensifiers.
• Ultra-quiet operation due to direct-servo architecture.
• Continuous-duty capability at 4000 bar (58,000 psi).
• Precision flow control: ±0.5% repeatability.
• Industrial-grade construction: martensitic stainless steel components, ceramic plungers and PEEK seals designed for abrasive waterjet environments.
• OEM-ready electronics and communications: EtherCAT, Modbus TCP/IP, analog/digital I/O.
• Built-in diagnostics for proactive maintenance and uptime maximization.

Model variants and comparison
Model 22 Direct Drive | Model 30 Direct Drive
Electric Servo Motor Power | 30 HP (22 kW) | 40 HP (30 kW)
Efficiency | ≥ 90% | ≥ 90%
Output Pressure (PSI) | 58,000 psi | 58,000 psi
Output Pressure (Bar) | 4000 Bar | 4000 Bar
Orifice & Flow Rate | 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) | 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
Footprint (L x W x H) | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm) | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm)

Reliability & Maintenance
Proven in production cutting platforms, the pump is specified for low maintenance and extended service intervals. With proper filtration (≤ 2 µm) and scheduled seal replacements, the pump can operate well over 400 hours at full pressure before the next maintenance. Key durable components include martensitic stainless steel pump parts, ceramic plungers and PEEK seals engineered for abrasive duty.

Technical specifications

• Product family: Direct Servo Drive 4000 Pump (Next-gen 4000-bar waterjet pump for OEM systems)
• Model variants: Model 22 Direct Drive; Model 30 Direct Drive
• Electric servo motor power: 30 HP (22 kW) — Model 22; 40 HP (30 kW) — Model 30
• Efficiency: ≥ 90%
• Maximum output pressure: 4000 Bar / 58,000 psi
• Orifice & flow rate: Model 22 — 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm); Model 30 — 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
• Footprint (L x W x H): 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm)
• Materials and wear parts: martensitic stainless steel components, ceramic plungers, PEEK seals
• Control & communications: EtherCAT, Modbus TCP/IP, analog and digital I/O (OEM-ready electronics)
• Diagnostics: real-time pressure, temperature and vibration monitoring; remote firmware update capability
• Duty: Continuous duty at full pressure (24/7 operation)
