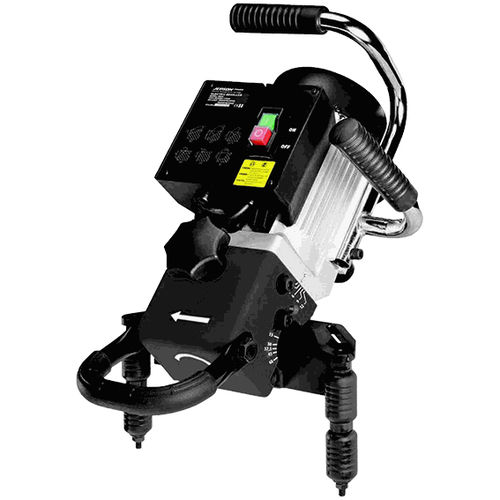

Electric chamfering and deburring machine 0/15-60/Tube
hand-heldfor tubeshigh-torque

Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 2
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 3
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 4
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 5
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 6
Electric chamfering and deburring machine - 0/15-60/Tube - JEPSON POWER - hand-held / for tubes / high-torque - image - 7
Add to favorites
Compare this product

Characteristics

Operation
electric
Type
hand-held
Applications
for tubes
Other characteristics
high-torque, with AC induction motor
Power

1,100 W
(1.5 hp)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Chamfer width

Min.: 15.7 mm
(0.6 in)

Max.: 21 mm
(0.8 in)

Chamfer angle

Min.: 0 °

Max.: 60 °

Description

High torque AC induction motor offers long life and quiet running Adjustable bevel angle from 0° and 15° to 60° Maximum beveling width 21 mm Tube beveling Ø 150 - 350 mm, with optional table platealem Adapter Ø 300 bis zu Ø 600 mm Delivery with 12 carbide inserts, tool holder, table plate for beveling tubes Ø 150 - 350 mm and tools Fast & tool-free change of inserts quick & easy Precise bevel depth adjustment
