machine tool vise / 5-axis / for heavy loads / self-centering
5CV1304 series

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Configuration:

    5-axis

  • Other characteristics:

    self-centering, compact, for heavy loads

  • Max. clamping force:

    16 N

  • Stroke:

    130 mm

Description

NEW 130mm Self Centering Vise & Accessories
Our newest design incorporates all the great features of our other industry leading self centering vises with the addition of a 130mm square base and wider master jaw that allows the holding of wider parts. The compact design is engineered as a perfect fit to the Fixture Pro System. Use the Drop and Lock locating and clamping feature or use locating pins and optional clamps to use in our QLC grid plate system. There won't be much you can't throw at this Low Profile vise.

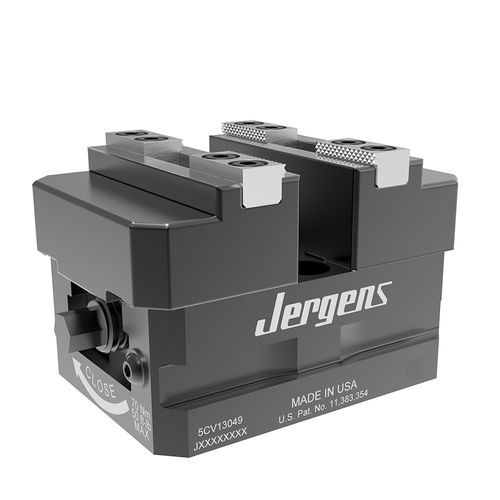

Picture for category NEW 130mm Self Centering Vise & Accessories
Quick change jaws, no tools required
Reversible Jaws
Pull-down jaw design minimizes jaw lift
Adjustable centerline, easy re-centering
Versatile mounting options, compatible with the following popular platforms:
o Jergens Fixture Pro – QLS (50mm pattern)
oJergens Fixture Pro – Drop & Lock (60mm pattern)
oJergens Quick Loc (52mm & 96mm patterns)
oLang Quick Point (52mm & 96mm patterns)
o5th Axis RockLock (52mm & 96mm patterns)
Standard vise includes Insert Jaws with serrated inserts
Vises can be ordered with alternate jaw types installed by adding the one of the following suffixes to a base part number:
o-A for aluminum soft jaws
o-S for steel soft jaws
o-H for hardened step jaws
Additional jaw sets can be purchased separately
Includes hex wrench
Max clamping force: 3,600 lbs @ 50 ft*lbs
