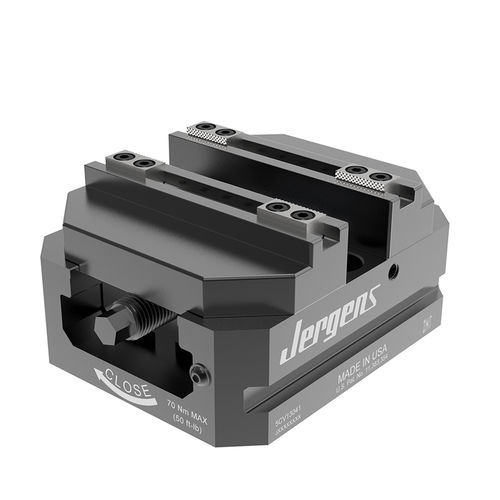

machine tool vise / 5-axis / self-centering
5CV130 series

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Configuration:

    5-axis

  • Other characteristics:

    self-centering

  • Stroke:

    75 mm

Description

NEW 75mm Self Centering Vise & Accessories
Picture for category NEW 75mm Self Centering Vise & Accessories
Quick change jaws, no tools required
Reversible Jaws
Pull-down jaw design minimizes jaw lift
Adjustable centerline, easy re-centering
Versatile mounting options, compatible with the following popular platforms:
o Jergens Quick-Loc (52mm pattern)
oLang Quick Point (52mm pattern)
o5th Axis RockLock (52mm pattern)
Standard vise includes Insert Jaws with serrated inserts
Vises can be ordered with alternate jaw styles installed. To order alternate jaws, replace the -IN suffix of the standard part number with one of the following:
o-A for aluminum soft jaws
o-S for steel soft jaws
o-H for hardened step jaws
Additional jaw sets can be purchased separately
Includes hex wrench
Max clamping force: 3,500 lbs @ 50 ft*lbs
