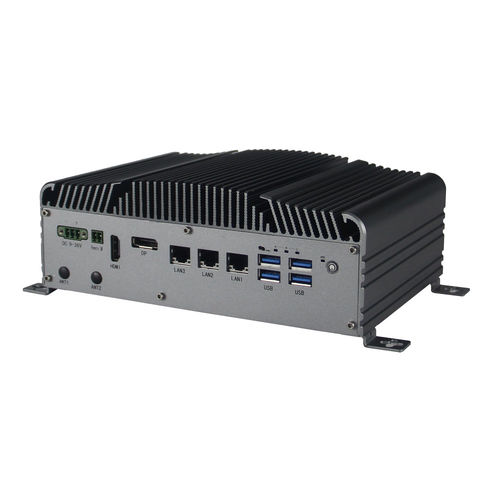

Embedded PC KMDA-3201

Intel® Celeron®Intel® Skylake ProcessorIntel® Kaby Lake Processor

[Specification] 1.Structure:Aluminum chassis, SGCC frame 2.Color:Silver 3.Net weight:2.20Kg 4.Mounting:Desktop mounting 5.Dimension:(W*H*D)210*144.3*75.5mm 6.Operating temperature: -20°C~70°C – Fanless with wide operating temp. SSD, Airflow -10°C~50°C – Fanless with HDD, Airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5 grms/5~500Hz/random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) 10.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class A [Key features] Aluminum chassis, fanless design Intel® Skylake-U / Kabylake-U CPU 2*DDR4 2133MHz SODIMM, Up to 32GB 1*DP, 1*HDMI, Dual 4K display 3*Gig LAN, 4*USB3.0, 3*USB2.0(one inside) 6*COM, 16-bit Iso. DIO, 8-bit DIO, Audio out 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key 1*mSATA, 1*2.5" SATA HDD/SSD driver bay Support iVpro and TPM2.0 DC 9~36V Wide Power Input Mechanical design flexible to the desktop mount [Applications] AI, Intelligent transportation(ITS), Machine Vision [Certification] CE/FCC Class A
