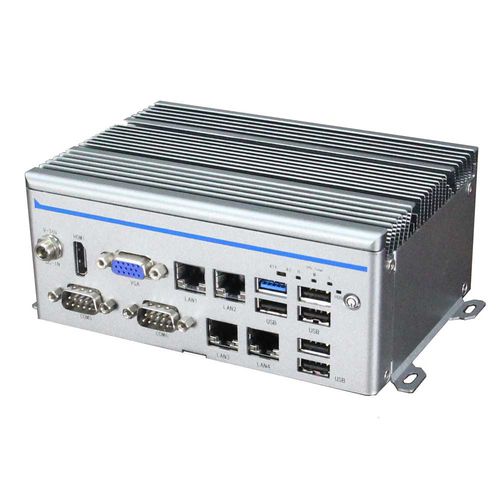

Embedded box computer KMDA-2602
Intel® Celeron J1900SATAMini PCIe

embedded box computer
embedded box computer
embedded box computer
embedded box computer
embedded box computer
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
Intel® Celeron J1900
Ports
SATA, Mini PCIe, CAN bus, USB 3.0, USB 2.0, RS-232, gigabit Ethernet, SO-DIMM, HDMI
Field
automation, for industrial applications, for IoT applications
Other characteristics
VESA mounting, Windows 10, Linux, Windows 7, Windows 8.1

Description

[Specification] 1.Structure:Top/bottom Aluminum Chassis, SGCC frame 2.Color:Silver 3.Net weight:1.30Kg 4.Mounting:Desktop and VESA 100*100mm mounting 5.Dimension:(W*H*D):155*111.8*65mm 6.Operating temperature: -20°C~65°C – Fanless with wide operating temp. SSD, Airflow -10°C~55°C – Fanless with HDD, Airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5 grms/5~500Hz/random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) 10.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD) 11.Certification/EMC:CE/FCC Class A [Key features] -Compact Aluminum Chassis, Fanless Design -Intel Baytrail Celeron J1900 2.0-2.42G CPU -1*DDR3L 1333MHz SODIMM , -Up to 8GB -4*Intel I211-AT PCIe Gig. LAN -1*HDMI and 1*VGA, Audio Line out -1*USB3.0, 6*USB2.0,6*COM, 8 bit DIO -1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB) -1*2.5" SATA2 Bay and 1*mSATA -DC 9~36V Wide Power Input [Applications] Iot terminal and manufacture application [Certification] CE/FCC Class A
