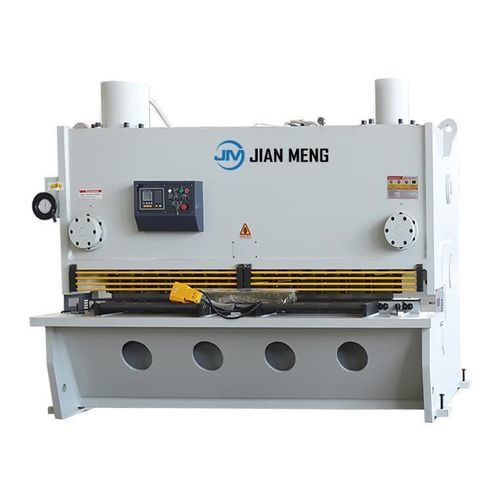

Hydraulic shear QC11K

sheet metalguillotinelinear

Product Overview

• The Jianmeng hydraulic guillotine shearing machine is a popular choice for cutting sheet metal, featuring adjustable blade clearance and angle.
• Especially advantageous for cutting sheets thicker than 13 mm, offering price discounts and high cutting accuracy compared to other shearing machines.

Stress Analysis and Finite Element Analysis

• Uses CAE software SOLIDWORKS for linear static structure, stress, and deformation analysis of frames.
• Finite Element Analysis (FEA) is valuable for complex structures, loads, and transient modeling.

CNC System

• Equipped with ESTUNE21S CNC system.
• High definition hydraulic display screen.
• Controls ordinary motors and frequency converters.
• X-axis intelligent positioning.
• Multi-step programming: 40 programs, each with 25 steps.
• Built-in time relay function.
• One-click function switching.
• Unilateral positioning function.
• One-click backup and restore parameters.
• Supports Chinese and English languages.
• Metric system.

Hydraulic Valve Group

• Adopts branded hydraulic valve group.
• Oil pressure overload protection minimizes oil leakage and valve jamming.
• Real-time oil pressure monitoring ensures smooth oil flow and stable operation.

Automatic Angle Adjustment

• Electric cutting angle adjustment device.
• Automatically adjusts cutting angle according to sheet thickness; no manual adjustment needed.

Back Gauge

• Rear stopper material design and stability are crucial for shear capacity.
• High-quality cutting achieved with excellent product stability and precise backstepping.
• Rear stop system uses high-speed ball screw and linear guides for longer lifespan, higher sensitivity, and enhanced collision resistance.

Main Motor

• Branded motors increase machine service life and ensure low-noise operation.
• Power level and installation size comply with IEC standards for ease of use and maintenance.
• Customizable power and voltage to meet specific customer requirements.

Technical Specifications
Table
  Unit
  Cutting thickness: mm
  Cutting width: mm
  Stroke times: min-1
  Rear material travel: mm
  Main motor power: kW
  Shear angle: °
  External dimensions: mm
  Weight: t
6×2500
6 | 2500 | 12 | 20-600 | 7.5 | 30′-2° | 3300×1580×2010 | 5
6×3200
6 | 3200 | 10 | 20-600 | 7.5 | 30′-2° | 4000×1680×2010 | 6.4
6×4000
6 | 4000 | 9 | 20-600 | 11 | 30′-2° | 4810×1730×2075 | 8.1
8×2500
8 | 2500 | 11 | 20-600 | 11 | 30′-2° | 3300×1600×4810 | 5.6
8×3200
8 | 3200 | 10 | 20-600 | 11 | 30′-2° | 3880×1630×2010 | 6.8
8×4000
8 | 4000 | 8 | 20-600 | 15 | 30′-2° | 4810×1800×2125 | 9.8
10×3200
10 | 3200 | 8 | 20-600 | 15 | 30′-2° | 3975×1800×2205 | 8.9
12×2500
12 | 2500 | 8 | 20-800 | 15 | 30′-2°30′ | 3275×1825×2180 | 8
12×3200
12 | 3200 | 7 | 20-800 | 15 | 30′-2°30′ | 3975×1860×2295 | 9.5
12×4000
12 | 4000 | 7 | 20-800 | 22 | 30′-2°30′ | 4880×2100×2460 | 14
16×2500
16 | 2500 | 7 | 20-800 | 22 | 30′-2°30′ | 3315×1950×2345 | 10.9
16×3200
16 | 3200 | 6 | 20-800 | 22 | 30′-2°30′ | 4015×2000×2350 | 13.4
20×2500
20 | 2500 | 6 | 20-800 | 30 | 30′-2°30′ | 3435×2220×2470 | 15.3
20×3200
20 | 3200 | 5 | 20-800 | 30 | 30′-2°30′ | 4235×2220×2470 | 18
25×3200
25 | 3200 | 5 | 20-800 | 45 | 30′-3° | 4715×2380×2965 | 24
25×4000
25 | 4000 | 4 | 20-800 | 45 | 30′-3° | 5110×2590×3200 | 31
25×6000
25 | 6000 | 5 | 20-1000 | 37*2 | 30′-3° | 7515×2965×3740 | 55.5
30×2500
30 | 2500 | 4 | 20-1000 | 55 | 30′-3°30′ | 3755×2500×3000 | 27
