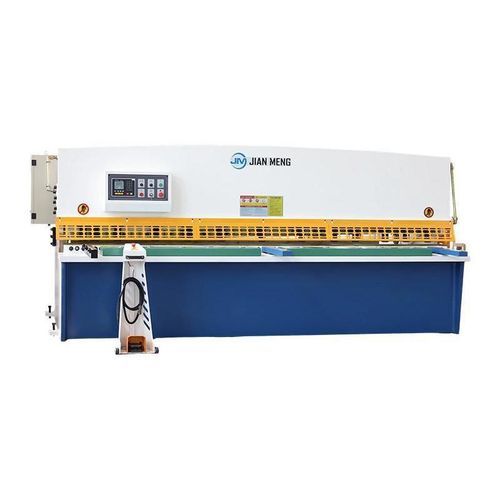

Hydraulic shear QC12K

sheet metalswing-beamlinear

Product Overview

• The Jianmeng swing beam shear adopts innovative technology and features an electric front angle adjustment function to ensure the accuracy of each cutting.
• Hydraulic swing shearing machine is a popular product in the current market, providing high-quality and cost-effective solutions for cutting full-length and ultra wide sheets.

Stress Analysis and Finite Element Analysis

• CAE software SOLIDWORKS can be used to analyze the linear static structure, stress, and deformation of the frames of bending machines and laser cutting machines.
• FEA is very meaningful for situations with complex structures, highly complex loads, transient modeling, and combinations of the above factors.

CNC System

• ESTUNE21S CNC system
• High definition hydraulic display screen
• Control ordinary motors and frequency converters
• X-axis intelligent positioning
• Multi step programming, 40 programs, each with 25 steps
• Built in time relay function
• One click function switching
• Unilateral positioning function
• One click backup and restore parameters
• Chinese and English
• Metric system

Hydraulic Valve Group

• This machine adopts branded hydraulic valve group.
• Oil pressure overload protection function, oil leakage and valve jamming rarely occur.
• Real time oil pressure monitoring ensures smooth oil flow and stable operation of equipment.

Feed Inlet

• Feed inlet design meets safety standards to ensure safe and reliable operation.
• Min feed height equals the thickness of the sheet; Max feed height equals the thickness of the sheet plus 20-25 mm.
• Equipped with height adjustment screws for easy customization of feeding height.
• Front and side guardrails ensure safe operation of operators.

Back Gauge

• Design and stability of the rear stopper material are important for shear capacity.
• High quality cutting achieved with excellent products, stability, and precise backstepping.
• Rear stop system movement supported by linear guides and high-speed ball screw for longer lifespan, higher sensitivity, and enhanced resistance to collision.

Main Motor

• Branded motors increase service life and ensure low-noise operation.
• Power level and installation size comply with IEC standards for easy use and maintenance.
• Customizable power and voltage to meet specific customer requirements.

Technical Specifications
Unit    Cutting thickness    Cutting width    Stroke times    Rear material travel    Main motor power    Shear angle    External dimensions    Weight
4×2000    4 mm    2000 mm    20 min-1    20-600 mm    7.5 kW    1°30′    2590×1610×1715 mm    3.8 t
4×2500    4 mm    2500 mm    20 min-1    20-600 mm    7.5 kW    1°30′    3140×1610×1630 mm    4.3 t
4×4000    4 mm    4000 mm    8 min-1    20-600 mm    7.5 kW    1°30′    4640×1640×1830 mm    7.5 t
6×2000    6 mm    2000 mm    20 min-1    20-600 mm    7.5 kW    1°30′    2590×1640×1720 mm    4.6 t
6×2500    6 mm    2500 mm    18 min-1    20-600 mm    7.5 kW    1°30′    3140×1640×1630 mm    5.2 t
6×3200    6 mm    3200 mm    14 min-1    20-600 mm    7.5 kW    1°30′    3840×1640×1630 mm    6.3 t
6×4000    6 mm    4000 mm    12 min-1    20-600 mm    11 kW    1°30′    4670×1900×1830 mm    9.3 t
6×5000    6 mm    5000 mm    7 min-1    20-800 mm    11 kW    1°30′    5770×2152×2065 mm    15.8 t
6×6000    6 mm    6000 mm    7 min-1    20-800 mm    15 kW    1°30′    6800×2300×2360 mm    22.2 t
8×2500    8 mm    2500 mm    14 min-1    20-600 mm    11 kW    1°30′    3140×1610×1660 mm    5.3 t
8×3200    8 mm    3200 mm    10 min-1    20-600 mm    11 kW    1°30′    3840×1610×1660 mm    6.3 t
8×4000    8 mm    4000 mm    10 min-1    20-600 mm    11 kW    1°30′    4700×1910×1830 mm    9.5 t
8×5000    8 mm    5000 mm    7 min-1    20-800 mm    15 kW    1°30′    5860×2252×2215 mm    18.5 t
8×6000    8 mm    6000 mm    6 min-1    20-800 mm    15 kW    1°30′    6870×2468×2410 mm    24.6 t
10×2500    10 mm    2500 mm    10 min-1    20-600 mm    15 kW    2°    3400×1690×1800 mm    7.8 t
10×3200    10 mm    3200 mm    8 min-1    20-600 mm    15 kW    1°48′    4100×1690×1900 mm    9.2 t
10×4000    10 mm    4000 mm    8 min-1    20-800 mm    18.5 kW    1°54′    4850×2152×2090 mm    15 t
12×2500    12 mm    2500 mm    10 min-1    20-600 mm    15 kW    2°    3400×1690×1800 mm    7.8 t
12×3200    12 mm    32000 mm    10 min-1    20-800 mm    18.5 kW    1°30′    4085×2050×2120 mm    12 t
12×4000    12 mm    4000 mm    8 min-1    20-800 mm    18.5 kW    2°    4870×2250×2150 mm    15.3 t
12×5000    12 mm    5000 mm    8 min-1    20-800 mm    30 kW    2°    5900×2480×2400 mm    22.4 t
16×2500    16 mm    2500 mm    8 min-1    20-800 mm    18.5 kW    2°    3435×2050×2130 mm    11.5 t
16×3200    16 mm    3200 mm    7 min-1    20-800 mm    18.5 kW    2°    4120×2192×2155 mm    14.5 t
16×4000    16 mm    4000 mm    7 min-1    25-800 mm    30 kW    2°    4900×2300×2315 mm    18.6 t
20×2500    20 mm    2500 mm    6 min-1    20-800 mm    37 kW    2°30′    3450×2075×2515 mm    15 t
20×3200    20 mm    3200 mm    5 min-1    25-800 mm    37 kW    2°30′    4180×2300×2600 mm    19 t
20×4000    20 mm    4000 mm    5 min-1    30-1000 mm    37 kW    2°30′    4950×2388×2760 mm    24 t
25×2500    25 mm    2500 mm    5 min-1    40-800 mm    45 kW    3°    3460×2300×2696 mm    16.8 t

Key Features / Technical Specifications

• Electric front angle adjustment for precise cutting
• Hydraulic swing beam design
• ESTUNE21S CNC system with multi-step programming
• Branded hydraulic valve group with overload protection
• Customizable feed inlet height and safety guardrails
• High-speed ball screw and linear guide rear stop system
• Branded main motor, IEC compliant, customizable voltage
• Wide range of models with varying cutting thickness, width, and power
