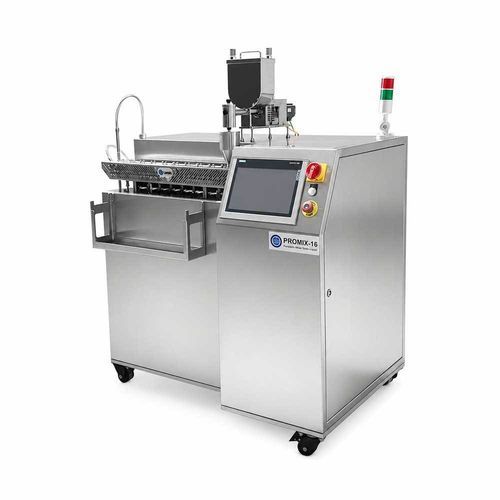

Twin screw extruder PROMIX series

compoundingpelletizingfor 3D printers

Product overview
Co-rotating parallel twin-screw extruders of the PROMIX series are designed for pharmaceutical continuous manufacturing and related polymer processing tasks. Applicable processes include hot-melt extrusion (HME), lipid extrusion, granulation, transdermal systems, implantable formulations and pharmaceutical 3D printing. As a Sino-German joint venture, Lemix supplies PROMIX extruders with GMP-compliant design, modular assembly and on-site engineering and validation support.

Description
Extrusion is a continuous processing technology that integrates feeding, melting, venting and discharge. PROMIX extruders connect upstream material handling and downstream unit operations to enable continuous production lines for pharmaceutical manufacturing and polymer-based formulation processes.

Design highlights

• CIP cleaning kit for simplified cleaning: insert cleaning hose into adapter port to flush screw and barrel.
• Detachable screw elements and barrel components for machine-washable cleaning.
• Barrel operating device and special tools allow rapid disassembly after disconnecting process units.
• Modular machine design supports fast assembly and disassembly of modules.
• Stainless-steel heater housings with mirror polishing for hygienic surface finish.

The Lemix control system enables

• Data acquisition and real-time monitoring of field-level equipment and production lines.
• User authority management, audit trail and electronic signature functions.
• Recipe management and batch record reporting for traceability.
• Encrypted, tamper-proof database files with full logging of data modifications.
• Local and remote historical data backup to secure data integrity.

Applications

• Hot Melt Extrusion (HME): disperses APIs into polymer carriers (PVP, methacrylates, cellulose derivatives). PROMIX homogenizes and applies high shear to create solid dispersions, improving dissolution and bioavailability of poorly soluble APIs.
• Solid lipid extrusion: cold extrusion of lipid-based carriers to produce plastic masses suitable for thermosensitive APIs without added solvents.
• Granulation: continuous wet extrusion, wet granulation and melt granulation for production of agglomerates and spheronizable extrudates.
• Transdermal preparations: HME for topical forms including patches and implantable devices.
• Pharmaceutical 3D printing: melt extrusion deposition for additive manufacturing after API–excipient mixing.

Technical table
Model | PROMIX-11 | PROMIX-16 | PROMIX-26S | PROMIX-32S | PROMIX-40S | PROMIX-50S
Diameter | 11 mm | 16 mm | 25.7 mm | 31.8 mm | 40.3 mm | 50.3 mm
Barrel length | 460 mm | 670 mm | 1000 mm | 1260 mm | 1620 mm | 1980 mm
L/D | 40:1 | 40:1 | 40:1 | 40:1 | 40:1 | 40:1
Motor power | 2 kW | 3.5 kW | 37 kW | 83 kW | 110 kW | 130 kW
Max. screw speed | 1000 rpm | 1000 rpm | 900 rpm | 900 rpm | 900 rpm | 900 rpm
Torque per shaft | 6 N·m | 9.5 N·m | 140 N·m | 315 N·m | 600 N·m | 980 N·m
Specific torque | 11 | 13 | 15 | 15 | 15 | 15
L*W*H | 1200x750x1300 mm | 1200x780x1300 mm | 2600x740x1680 mm | 3800x760x1950 mm | 4050x780x1300 mm | 4500x800x1680 mm
Weight | 270 kg | 305 kg | 1500 kg | - | - | -
Output | 0.2–2.5 kg/h | 0.5–20 kg/h | 50–200 kg/h | 60–250 kg/h | 80–300 kg/h | 100–350 kg/h

Technical specifications

• PROMIX-11 — Diameter: 11 mm; Barrel length: 460 mm; L/D: 40:1; Motor power: 2 kW; Max screw speed: 1000 rpm; Torque per shaft: 6 N·m; Specific torque: 11; Dimensions: 1200x750x1300 mm; Weight: 270 kg; Output: 0.2–2.5 kg/h.
• PROMIX-16 — Diameter: 16 mm; Barrel length: 670 mm; L/D: 40:1; Motor power: 3.5 kW; Max screw speed: 1000 rpm; Torque per shaft: 9.5 N·m; Specific torque: 13; Dimensions: 1200x780x1300 mm; Weight: 305 kg; Output: 0.5–20 kg/h.
• PROMIX-26S — Diameter: 25.7 mm; Barrel length: 1000 mm; L/D: 40:1; Motor power: 37 kW; Max screw speed: 900 rpm; Torque per shaft: 140 N·m; Specific torque: 15; Dimensions: 2600x740x1680 mm; Weight: 1500 kg; Output: 50–200 kg/h.
• PROMIX-32S — Diameter: 31.8 mm; Barrel length: 1260 mm; L/D: 40:1; Motor power: 83 kW; Max screw speed: 900 rpm; Torque per shaft: 315 N·m; Specific torque: 15; Dimensions: 3800x760x1950 mm; Output: 60–250 kg/h.
• PROMIX-40S — Diameter: 40.3 mm; Barrel length: 1620 mm; L/D: 40:1; Motor power: 110 kW; Max screw speed: 900 rpm; Torque per shaft: 600 N·m; Specific torque: 15; Dimensions: 4050x780x1300 mm; Output: 80–300 kg/h.
• PROMIX-50S — Diameter: 50.3 mm; Barrel length: 1980 mm; L/D: 40:1; Motor power: 130 kW; Max screw speed: 900 rpm; Torque per shaft: 980 N·m; Specific torque: 15; Dimensions: 4500x800x1680 mm; Output: 100–350 kg/h.
