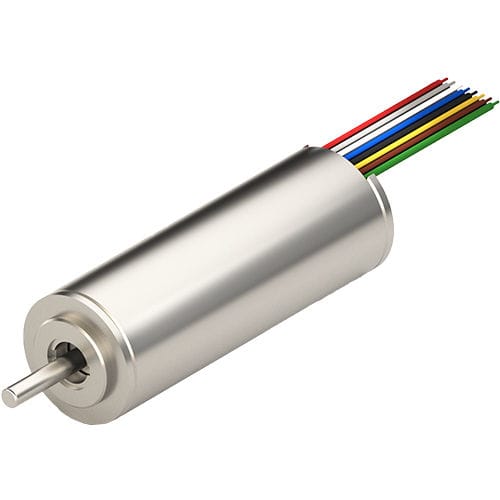

DC motor 13ZWWC37

brushless24 Vslotless

The 13mm Slotless Brushless DC Motor, model 13ZWWC37, is designed for high efficiency and performance. It features a rated power of 11W and a peak torque of 26.73mN.m. - Motor part number: 13ZWWC37 - Pole pairs: 1 - Phase-to-phase resistance: 3.65 Ω - Phase-to-phase inductance: 0.113 mH - Winding connection method: Delta connection - Insulation class: B - Duty type: S2 - Feedback method: Hall sensor - Commutation angle: 120° - Insulation strength (Withstand voltage): 300VAC/1KHz/1mA/1s - Insulation resistance: 100MΩ/300VDC - Weight: 28.6 g - Rated voltage: 24 V - Rated power: 11 W - Rated torque: 2.7 mN·m - Rated speed: 43500 RPM - Rated current: 0.66 A - No load speed: 46800 RPM - No load current: 0.086 A - Motor efficiency: 69% - Noise (Ambient noise 20dB, test distance 1m): ＜50 dB - Thermal Resistance (No-load): 3.70 K/W - Ambient temperature: 22.3 ℃ - Max winding temperature: 63 ℃ - Torque constant: 4.06 mN·m/A - Back-EMF constant - peak value: 0.6 V/Krpm - Back-EMF constant - effective value: 0.43 V/Krpm - Peak torque: 26.73 mN·m - Peak current: 7 A - Inertia moment: 0.14 g·cm² - Mechanical time constant: 3.09 ms - End bell: Stainless steel - Bearing: Deep groove ball bearing - Magnet: Sinter NdFeB - Rotation shaft: Carbon steel Dimensional Drawings: Available upon request. Torque Performance Curves: Available upon request.
