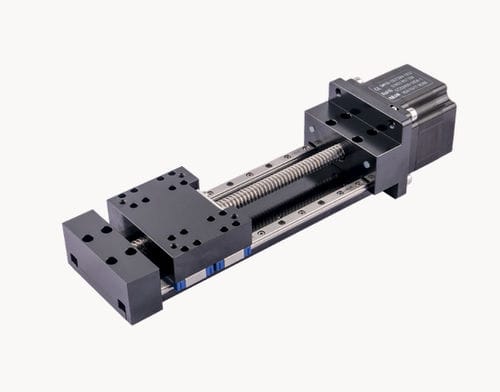

Electric actuator DWM 57

linearstepperlead screw

Motor Characteristics
Motor | Voltage [V] | Current [A] [RMS] | Resistance [Ω] | Inductance [Ω] | Lead Wire No. | Motor Length [mm]
23E2110 | 6.4 | 1 | 6.4 | 16.4 | 4 | 45
23E2120 | 3.2 | 2 | 1.75 | 4.1 | 4 | 45
23E2130 | 2.4 | 3 | 0.8 | 1.7 | 4 | 45
23E2210 | 10.8 | 1 | 11.5 | 32 | 4 | 65
23E2225 | 4.2 | 2.5 | 2 | 5.2 | 4 | 65
23E2240 | 2.8 | 4 | 0.7 | 2 | 4 | 65

Available Lead Screw and Travel per Step
Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]
0.375 | 9.525 | 0.025 | 0.635 | A | 0.0032
0.375 | 9.525 | 0.05 | 1.27 | D | 0.0064
0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079
0.375 | 9.525 | 0.083 | 2.1167 | H | 0.0106
0.375 | 9.525 | 0.1 | 2.54 | K | 0.0127
0.375 | 9.525 | 0.125 | 3.175 | L | 0.0159
0.375 | 9.525 | 0.167 | 4.233 | P | 0.0212
0.375 | 9.525 | 0.2 | 5.08 | R | 0.0254
0.375 | 9.525 | 0.25 | 6.35 | S | 0.0318
0.375 | 9.525 | 0.375 | 9.525 | V | 0.0476
0.375 | 9.525 | 0.384 | 9.7536 | W | 0.0488
0.375 | 9.525 | 0.4 | 10.16 | X | 0.0508
0.375 | 9.525 | 0.5 | 12.7 | Y | 0.0635
0.375 | 9.525 | 1.0 | 25.4 | Z | 0.127
0.394 | 10 | 0.079 | 2 | G | 0.01
0.394 | 10 | 0.3937 | 10 | C | 0.05
0.394 | 10 | 0.7874 | 20 | I | 0.1

Mechanical Specifications
Model | C100B(dyn)(kN) | Co(stat)(kN) | Mro(Nm) | Mpo(Nm) | Myo(Nm)
DWM 57 | 1.83 | 1.83 | 3.8 | 12.68 | 12.68

Dimensional Drawing
Dimensional drawings and external actuator images are provided for design reference (image files: 57_main.png, 23_demension-external.jpg).

Available Stroke Selection
Size A (mm) | Stroke B (mm) | Weight (kg) Single stack | Weight (kg) Double stack
152 | 50 | 1.17 | 1.465
202 | 100 | 1.26 | 1.555
252 | 150 | 1.35 | 1.645
302 | 200 | 1.441 | 1.736
352 | 250 | 1.531 | 1.826
402 | 300 | 1.622 | 1.917
452 | 350 | 1.712 | 2.007
502 | 400 | 1.804 | 2.099
552 | 450 | 1.894 | 2.189
602 | 500 | 1.984 | 2.279
652 | 550 | 2.075 | 2.37
702 | 600 | 2.165 | 2.46
* Weight values are for reference only and may vary with actual configuration.

Speed Thrust Curves
Speed-thrust curve charts are available for Single Stack and Double Stack configurations (image files: 23_single.png, 23_double.png).

Technical specifications

• Product: DWM 57 (Size 57 mm DWM)
• Brand: DINGS
• Motor options (examples): 23E2110, 23E2120, 23E2130, 23E2210, 23E2225, 23E2240 with voltage, current, resistance and inductance as listed above
• Available lead screw codes and leads: A, D, F, H, K, L, P, R, S, V, W, X, Y, Z, G, C, I (see table for exact lead and travel per step)
• Mechanical performance (DWM 57): C100B(dyn) 1.83 kN, Co(stat) 1.83 kN, Mro 3.8 Nm, Mpo 12.68 Nm, Myo 12.68 Nm
• Stroke selections from 50 mm to 600 mm (various Size A / Stroke B combinations) with single and double stack weight values provided
• Dimensional drawings and speed-thrust curve charts available for design reference
