Ball screw linear module DMP 100

compact

Product overview
Compact 42 mm linear module with ball screw drive designed for precise linear positioning and motion control. Stroke: 100 mm; ball screw lead: 2 mm; linear travel per step: 0.01 mm/step.

Motor characteristics

• Motor part number: DMP100-17E2115BS24-80175-110
• Phase: 2
• Step angle: 1.8°
• Rated current/phase: 1.5 A (RMS)
• Resistance/phase: 1.9 ±10% Ω
• Inductance/phase: 2.2 ±20% mH
• Linear travel per step: 0.01 mm/step
• Ball screw diameter: Φ8 mm
• Ball screw lead: 2 mm
• Grade: C5(DY)
• Insulation class: B
• Insulation resistance: 100 MΩ (500 VDC)
• Heat rise: 80 °C
• Stroke: 100 mm
• Axial clearance of ballscrew: 0.005 mm
• Operating temperature: 0-40 °C (no condensation)

Dimensional drawings

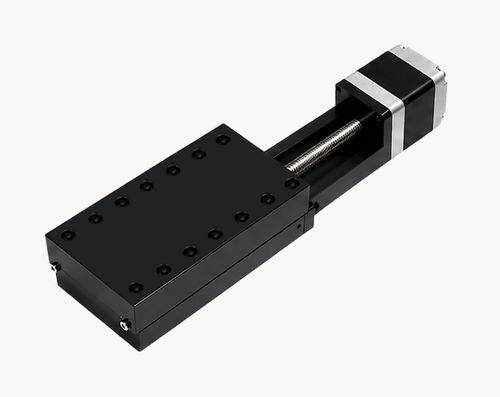

External product image and a detailed dimensional drawing are provided for reference: DMP_100.png and DMP100-dimension.jpg. Use these for mounting and integration checks.

Speed-thrust curves
Speed-thrust characteristic curves are available for Single Stack and Double Stack configurations (size reference: 42 mm). Refer to the curves to select the appropriate configuration for required speed and thrust.

Test conditions
Testing voltage: 24 Vdc; Driver model: DS-OLS2-FPD (bipolar chopper driver) at rated current (rms). Motor thrust may vary depending on supply voltage and driver conditions. A 50% thrust margin is recommended.

Technical specifications

• Model: DMP 100
• Motor part number: DMP100-17E2115BS24-80175-110
• Phase: 2
• Step angle: 1.8°
• Rated current per phase: 1.5 A (RMS)
• Resistance per phase: 1.9 ±10% Ω
• Inductance per phase: 2.2 ±20% mH
• Linear travel per step: 0.01 mm/step
• Ball screw diameter: Φ8 mm
• Ball screw lead: 2 mm
• Grade: C5(DY)
• Insulation class: B
• Insulation resistance: 100 MΩ (500 VDC)
• Maximum heat rise: 80 °C
• Standard stroke: 100 mm
• Axial clearance of ballscrew: 0.005 mm
• Operating temperature: 0-40 °C (no condensation)
