Process sterilizer

heatautomaticprofessional

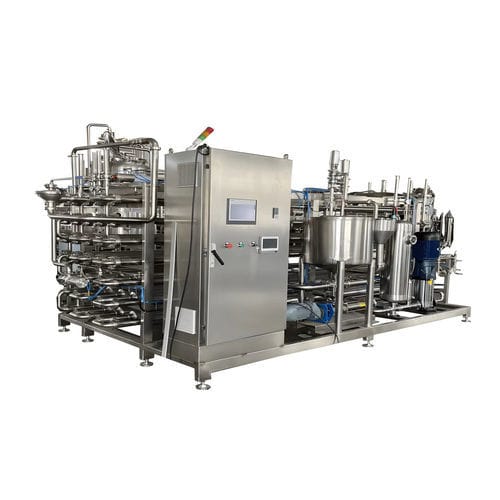

Tubular automatic ultra-high temperature sterilization equipment is professional equipment for an aseptic cold-filling production line. It consists of a plate heat exchanger, tubular heat exchanger, material balance system, material increase system, material cooling system, and steam system. Instantaneous sterilization method, the machine saves energy, the sterilization temperature is constant, the control precision is high, the active ingredient damage is small, and the machine life is long. Description • This machine adopts the latest energy-saving design, the heating, sterilization, and cooling tubes are about 20-50% more than the previous year, the heat exchange area is large, and the steam is saved. Compared with other sterilizers, the heat exchange area is small, and the steam consumption is large. This machine has low steam consumption and high heat recovery. One ton of equipment can save more than 30 kilograms of steam per hour compared to the same period last year, and steam alone can save more than 50,000 yuan a year. According to customer needs, a high-temp condensate recovery device can be added to save energy. • This machine has a large heat exchange area, so the sterilization temperature difference is small. Even if it is shut down due to a fault, it will not cause the material to be damaged due to high temperature. Compared with other domestic models, the temperature difference is large. At the same time, the inner wall cannot be cleaned thoroughly. • Due to the small temperature difference, the machine can better protect the active ingredients of the material from being damaged.
