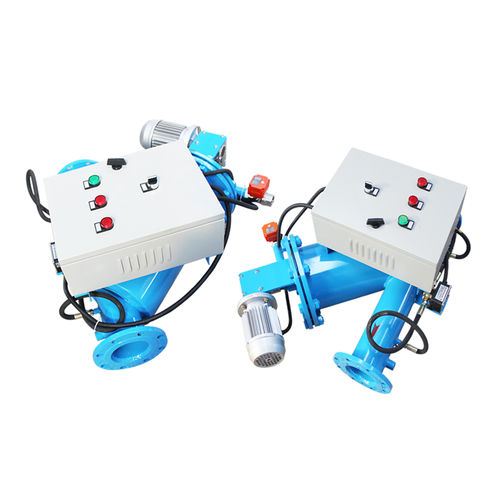

Self-cleaning filter YL-3Y

waterfor wastewaterfor rainwater

Automatic brush type filter Stucture&Principle Automatic brush-type filters, the internal structure of the 304 Stainless steel wire brush and stainless steel filter and transmission parts formed by the drive motor and electric valve automatically clean the sewage, the operation mode to run automatically (can be run manually) with pressure time difference and the dual function of automatic discharge. The automated part is the world's most advanced and most reliable PLC programmable controller. When the water flow through the filter, water filter intercepted by mechanical impurities, when the filter surface accumulation of impurities through increased pressure to 0.04MPa, the differential pressure signal that is developed, while PLC command is issued, drive motor starts, discharge valve is opened, the impurities deposited on the filter was rotating brush, the discharge from the outfall, the brushing process without personnel to operate the sewage, with no downtime. At the same time, the device also has a regular cleaning sewage cleaning sewage and manual functions, in any case to ensure the safe and reliable water.
