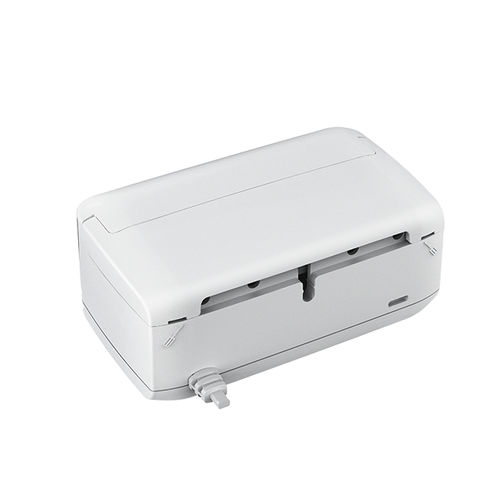

3-channel actuator controller JCB35Q3

single-channel2-channel

· Outputs for actuator: 1-3 · IP grade: IPX4 · Economy • Power:input_100-240VAC, 50/60 Hz;The output power is 50W in the rated state, and the output power is 120W in the working mode • Power point light: Yes • Actuator interface: Max.3 channels, ET 6pin waterproof bending plug • Handset interface: 1 channel, 10pin crystal head waterproof bending plug • Emergency stop switch interface: optional, 01 waterproof bending plug • Standby power:Maximum 1W (230V) • Color: Grey • Control idea:H-bridge, the service life exceeds 20000 cycles • Duty cycle: 2/18 @ 25°C; on/off continuous use (120W at 25°C for 120 seconds) • Weight: o.6kg (including power cable) • IP grade: IPX4 • Single channel maximum current: 5±0.5A • Power management: voltage management can ensure maximum power operation and limit the maximum output power • Safety system: switching power supply thermal protection switching power supply over-current protection switching power supply short circuit protection Over current protection of control panel • Installation: bed frame (via screws) • Line card: All ports have
