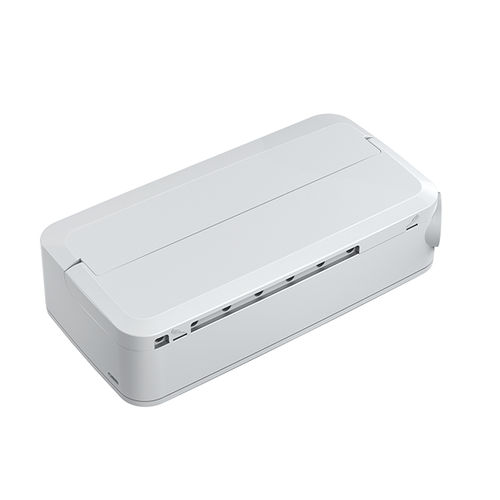

3-channel actuator controller JCB35T6
4-channelsingle-channel2-channel

3-channel actuator controller - JCB35T6 - Jiecang Linear Motion - 4-channel / single-channel / 2-channel
3-channel actuator controller - JCB35T6 - Jiecang Linear Motion - 4-channel / single-channel / 2-channel
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Options
2-channel, 4-channel, single-channel, 3-channel

Description

· Outputs for actuator: 1-5 · IP grade: Max. IPX6 · Power supply: SMPS • Input power supply:100-240 VAC, 50/60 Hz; • Out put power :Max. 250W @ 2min on/18min off • Power indicator: Yes • Actuator interface:Max. 5channels, 6-pin ET bending plug • Handset interface:1 channel, 10 pin crystal bending plug • Battery interface:1 channel, 4 pin ET bending plug • Standby power:Max. 1W(230V) • Color:gray • Control Method:H-bridge(no relay noise), the life-time exceeds 20,000 cycles. • Duty Cycle:2/18min @ 25°C • Net Weight:0.8kg • Compatibility:Support signal switch actuator • Battery Management: turning off at low voltage; charging and discharging management • IP grade: Max. IPX6 • Operation:Synchronous drive • Max. Current:Total 10A for all channels • Power supply management:Voltage management ensures maximum working power and limit output power up to 200W • Safety system: switching power supply thermal protection,control box thermal protection overheat protection,Short circuit protection • Installation: frame (fixed by screws or slider block) • Cable cover:All channels are available
