Plastic film form-fill-seal machine GQ

for packagingfor food packagingfor pharmaceuticals packaging

Product Description
The granule packaging machine is designed to quantitatively dose and place granular products into bags for sealing. It is suitable for a wide range of free-flowing particulate materials and supports industrial production requirements.

Overview

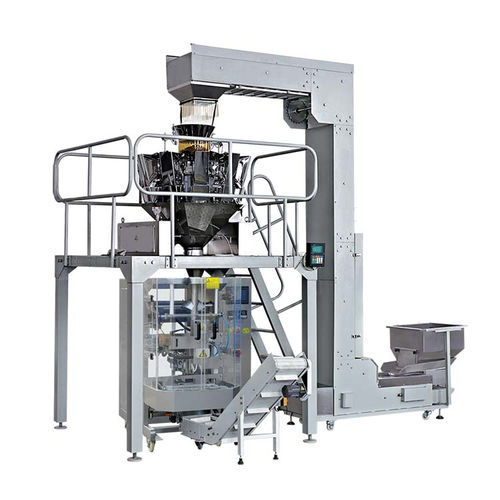

The fully automatic granule packaging line integrates a packaging host, ten-head computer combination scale, support platform, finished product conveyor and Z-shaped feeding conveyor (with vibration). Control is provided by an imported PLC with HMI touch screen. A servo-driven film transport system enables precise film positioning and consistent bag forming. The line performs weighing, feeding, filling, bag making and date coding automatically. Configurations can be customized to product and process needs.

Main components / Typical configuration

• Packaging host
• Ten-head computer combination scale (electronic quantitative scale)
• Support platform
• Finished product conveyor
• Z-shaped feeding conveyor (with vibration)
• Supply system options: vibrating disk, screw conveyor, vibrating belt
• Weighing devices: high-precision electronic scales or volumetric meters
• Sealing systems: heat sealing, cold sealing, ultrasonic sealing
• Control system: PLC with HMI and touch screen
• Servo film transport system for accurate film positioning

Applications
Suitable for packaging various granular products: puffed snacks, crisps, candies, rice, seasonings, nuts, pharmaceutical granules, chemical granules (fertilizers, additives), detergent powders, building material granules, pet food and mixed grains. Machine configuration is adapted to product characteristics and packaging formats.

Product Advantages

• Increased production throughput through automated feeding, weighing, filling and sealing
• High dosing accuracy using multi-head combination scales
• Consistent bag quality with professional sealing methods
• Reduced labor and human error via automation
• Flexible configuration: selectable feeding, weighing and sealing systems to match product requirements

Models / Series (examples)

• GQ-398 fully automatic granule packaging production line
• GQ-520 fully automatic packaging production line
• GQ-720 fully automatic packaging production line
• GQK-40/80 granule automatic packaging machine
• GQK-500/1000 granule automatic packaging machine
• GQK-180 automatic packaging machine
• GQK-500A chain bucket automatic granule packaging machine
• GQ-25/50K granular series electronic quantitative packaging scale

Notes
Machines are configurable to product type and packaging specification. Options include different feeding systems, weighing combinations, sealing methods and conveyor arrangements.

Technical characteristics / Specifications

• Function: automatic weighing, feeding, filling, bag making, sealing and date printing
• Control: imported PLC control, HMI with touch screen
• Weighing: ten-head combination scale / electronic quantitative scales for granular products
• Film transport: servo film transport system for precise positioning
• Supply systems: vibrating disk, screw conveyor, vibrating belt (configurable)
• Sealing methods: heat sealing, cold sealing, ultrasonic sealing (selectable)
• Typical line elements: packaging host, combination scale, support platform, finished product conveyor, Z-shaped feeder
• Typical applications: puffed food, crispy rice, jelly, candy, nuts, pet food, pharmaceuticals, chemicals, detergents, building materials
• Customizability: machine configuration and components customizable to product requirements
