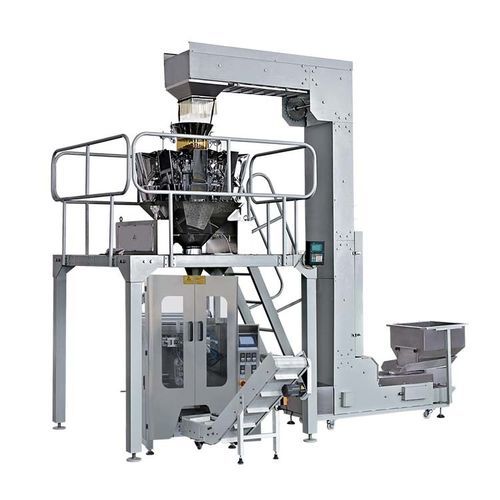

Vertical bagging machine GQT

weightform fill sealPLC-controlled

Product Description
The solid block material measuring and packaging machine is automated equipment designed for measuring and packaging solid block materials. It performs bag loading, date printing, bag opening detection, measuring, filling, sealing and finished-product transfer automatically. Intelligent bag-open detection prevents material addition when a bag is closed or partially open, reducing wasted bags and product. Two model options are available: GQ-8-200 and GQ-100, selectable according to product characteristics and production requirements.

Main Features and Functions
High-precision measurement: equipped with weighing or volume-measurement systems (for example load cells or volume sensors) to ensure accurate and repeatable weight or volume per package.
Multiple metering methods: supports counter-based or volume-based metering to adapt to different solid block materials and dosing needs.
Automated workflow: automatic feeding, metering, packaging and sealing integrated with conveyors to transfer material to the metering unit and to fill and seal bags without manual intervention.
Flexible packaging formats: configurable for 3D bags, cartons or cans; formats can be switched to meet product and market requirements.
Automatic adjustment and stable control: PLC-based control with automatic tuning functions to maintain consistent packaging speed and quality.
Visual operation interface: touchscreen for intuitive operation, parameter setting and production monitoring.

Application Display
Suitable for packaging a wide range of solid block materials including food items (candies, puffed snacks, nuts, dried fruit, chocolate, biscuits, oatmeal), chemical granules (fertilizer, plastic or pigment granules), pharmaceutical solids (capsules, tablets, granules), building materials (sand, gravel particles, cement block materials), household products (washing powder, detergents) and animal feed (pellets, feed additives). Note: machine may require adjustment or customization according to product shape, size, weight and packaging specification.

Product Advantages

• Accurate and repeatable measurement to ensure package consistency.
• Automated operation reduces manual labor and increases throughput.
• Multiple metering options adapt to different material types and sizes.
• Flexible packaging configurations to serve diverse market needs.
• Stable operation via PLC control and automatic adjustment functions.
• Reduces handling and labor costs while improving hygiene and safety.
• Enhances packaging efficiency and ensures consistent product quality.

Technical specifications

• Model options: GQ-8-200, GQ-100 (GQ series).
• Primary functions: bag loading, date printing, bag-open detection, measuring, filling, sealing, finished-product transfer.
• Measurement systems: load cell or volume-measurement devices (high-precision).
• Metering methods: counter measurement and volume measurement options.
• Control system: PLC-based automatic control and parameter adjustment.
• Operation interface: touchscreen for parameter setting and monitoring.
• Supported packaging forms: 3D bags, cartons, cans (configurable).
• Safety/quality features: intelligent bag-open detection to prevent waste and avoid adding material to unopened or partially opened bags.
