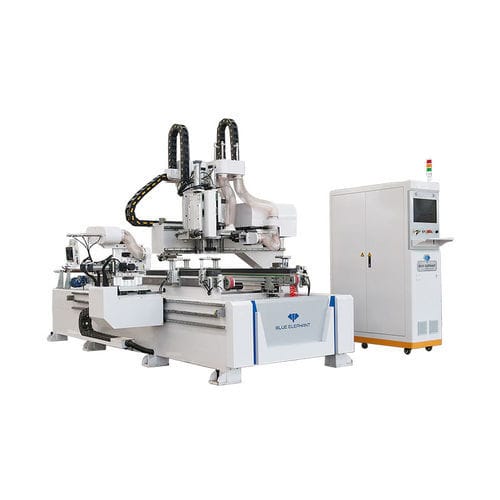

7-axis CNC milling machine EM-3.2-1126

verticalfor wooddrilling

Product Overview: EM3.2-1126 through-type double-channel keyhole hinge machine is a crucial piece of equipment in woodworking machinery, offering flexible customization for factory processing needs. It is primarily used for processing wooden doors, door frames, window frames, window sashes, door locks, lock steps, hinges, door closers, and more. It significantly boosts production efficiency and effectively reduces labor costs. Features: - The keyhole hinge machine uses a through-type design with conveyor rollers to transport door panels, enabling intelligent online operation. - It features 7 motion axes, automatic door width adjustment, precise alignment for lock slots and bodies, and simultaneous processing of hinges and lock holes, saving time, effort, and steps. - Lock slots, lock steps, bolt slots, paint holes, door closers, and hinges can all be processed quickly. - Automatic width, length, and thickness measurement ensure smart and precise processing. Parameters: - EM3.2-1126 Through-type Double-channel Door Lock Making Machine - Machine model: EM3.2-1126 - Machine dimension: 4200mm×3200mm×2400mm - Max. processing size: 1100mm×2600mm - Min. processing size: 400mm×1800mm - Max. processing thickness: 35mm-65mm - Key hole spindle power: 6kw×1 2.2kw×1 - Key slot spindle power: 6kw×1 2.2kw×1 - Hinge spindle power: 3.5kw×1 2.2kw×1 - Paint hole and door closer power: 3.5kw (Double head) - Total power: 25.6kw - Max. processing speed: 50m/min - Air pressure: 0.5-0.7mpa - Total weight: 3000kg Application: The door lock hole making machine is capable of processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, hinges, end face paint holes, and door closers. Additionally, it can perform milling, drilling, grooving, and keyhole-shaped punching on both the flat surfaces and sides of wooden doors. It is also suitable for grooving and drilling in wooden furniture. Optional Parts: - Front and rear machining spindle - Hinge processing device - Lock groove processing device - Tool setting FAQ: - What's the purpose of this machine? The CNC door lock making machine is mainly used for processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, door lock hinges, end face paint holes, door closers, hinges, etc. - How long is the warranty of the machine? The machine has a one-year warranty and free after-sales service for life. - Can this machine process aluminum? No, it can only process wood materials. Customer Reviews: - Ben from Canada: "After 10 days installation, training via Blue Elephant, my machine is working now. And I can make some cabinet making. Exactly Machine performance exceeded my expectations, it is with faster speed and good precision. I like it very much. Thanks for all support from Blue Elephant." - Ricardo from Canada: "It’s been three years since I bought my machine. The machine works every day, does not stop. I’m very happy with the quality of the machine, it looks very strong and well built." - Mazen from Oman: "I am very happy with machine quality. It is a happy purchase from China. I will share more working videos after I use my lovely machine." - Anis Becheikh from Qatar: "We used it to make cabinets for four years, I like it very much! Thanks to Blue Elephant for providing such a good-quality machine and perfect after-sales service." Technical Specifications: - Brand: Blue Elephant - Model: EM-3.2-1126 - Size: 4200mm×3200mm×2400mm - Power: 25.6kw - Category: Door Lock Machine - Supply Ability: 400+ Units in Stock - Customized: Size can be customized - After-sale Service: Free Lifetime Technical Support online, Overseas service - Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
