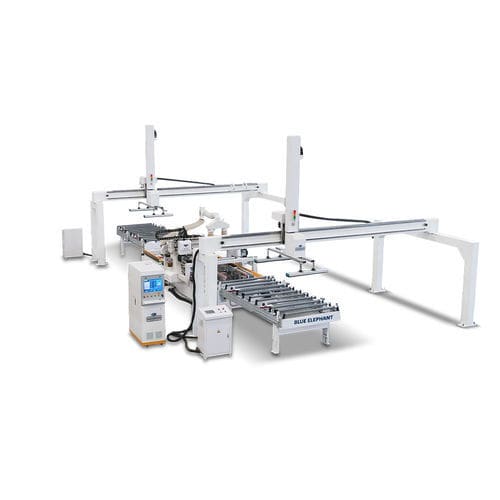

Multifunction cutting and machining center EM2-1128

wooden

Product Overview: EM2-1128 auto loading and unloading 4 sides wood door cutting saw is designed for the wooden door industry. With one-time positioning, it finishes all four sides with high accuracy and fast efficiency. This 4 sides edge cutting machine is equipped with a gantry automatic loading/unloading system and conveyor rollers for fully automated material handling. It can also connect to production optimization software for automatic scanning and through-feed conveyor operation, enabling a smart, unmanned production line. Features: - The saw blade is equipped with a floating guide saw to prevent edge chipping. - A large-capacity waste collection system removes offcuts from the machining area via a conveyor. - Door panel width can be automatically centered, with fully automatic adjustment of length and width—no manual intervention required. - This 4 sides cutting machine can continuously cut door panels of different sizes without stopping. - The door panels are stacked in bundles under the gantry. The gantry automatic loading and unloading system uses vacuum handling, reducing labor and improving efficiency. - The automated conveyor roller table transports door panels and provides edge positioning to ensure accurate alignment for the next process. Parameters: - Model: EM2-1128 Through-type Wood Door Cutting Saw - Control system: XINJE control system - Voltage/frequency: 380V/50HZ/3P - Spindle power: 7.5KW+0.75KW CC saw blade spindle*3sets - Inverter: XINJE - Motor and drive: XINJE absolute servo:Y axis 1.5kw, X axis 0.75kw - Bed structure: Four-side saw bed - Reducer: Shimpo reducer - Table structure: Pass-through mobile adsorption table - Side panel type: Four-sided saw column - Chassis(type, color): Standard - Guide rail: Taiwan SHAC guide rail: Y #30/X #25/Z #25 - Vacuum pump: 5.5KW - Rack: J&T rack 2M - Lubrication system: 1.5L automatic lubrication - Fan: Vortex pump (double stage)5.5KW/380V/3P/50-60HZ - Positioning cylinder: Four-sided saw standard - Machine size: 4880x2450x2500mm - Net weight: About 3000kg - Panel size: Length: 1700-2800mm, Width: 390-1100mm, Thickness: ≤65mm Application: - Cabinets: ideal for machining cabinet bodies, doors, and drawer panels. - Flooring: used to cut floor planks with precise dimensions and smooth edges. - Wall panels: processes decorative wall panels to maintain uniform sizing. - Wooden doors: cuts door panels, frames, and related components. - Wooden windows: suitable for machining window frames, sashes, and other parts. - Wooden boxes: cuts box panels with accurate dimensions for easy assembly. Optional Parts: - Automatic lubricating oil pump - Electrical distribution box - Primary-secondary saw blade - Primary-secondary saw head FAQ: - How does the loading and unloading 4-sided saw cutting machine work? A 4-sided saw uses multiple sets of blades to cut all four sides of a door panel in one pass. This enables fast, efficient, and accurate trimming on every edge. - What materials can the loading and unloading 4-sided wood door cutting machine handle? It is designed for a wide range of materials, including solid wood, composite panels, plywood, and MDF. - What are the key advantages of the loading and unloading 4-sided saw? This 4 sides wood door cutting saw is equipped with a gantry automatic loading/unloading system and conveyor rollers for fully automated material handling. Customer Reviews: - Michael Turner (America): Our production line has become noticeably faster since we started using this 4-sided door trimming saw. The automatic loading and unloading save us a lot of labor, and the cutting accuracy is excellent. It’s a reliable machine that has improved our daily output. - Ahmed Al-Fahad (Saudi Arabia): The machine runs smoothly and delivers very stable performance. It handles both solid wood and composite door panels with ease. The automation features are especially helpful for large-volume orders. Great value for manufacturers like us. - Daniel Müller (Germany): We are very satisfied with this 4-sided saw. The precision on all four sides is outstanding, and the conveyor system keeps the workflow continuous. Installation and training were professional, making it easy for our team to get started quickly. - Lucas Silva (Brazil): This machine has significantly improved our efficiency in processing wooden doors. The waste collection and automated centering functions work perfectly. Highly recommended for factories looking to upgrade their production lines. Technical Specifications: - Model: EM2-1128 Through-type Wood Door Cutting Saw - Control system: XINJE - Voltage/frequency: 380V/50HZ/3P - Spindle power: 7.5KW+0.75KW CC saw blade spindle*3sets - Inverter: XINJE - Motor and drive: XINJE absolute servo:Y axis 1.5kw, X axis 0.75kw - Bed structure: Four-side saw bed - Reducer: Shimpo reducer - Table structure: Pass-through mobile adsorption table - Side panel type: Four-sided saw column - Chassis(type, color): Standard - Guide rail: Taiwan SHAC guide rail: Y #30/X #25/Z #25 - Vacuum pump: 5.5KW - Rack: J&T rack 2M - Lubrication system: 1.5L automatic lubrication - Fan: Vortex pump (double stage)5.5KW/380V/3P/50-60HZ - Positioning cylinder: Four-sided saw standard - Machine size: 4880x2450x2500mm - Net weight: About 3000kg - Panel size: Length: 1700-2800mm, Width: 390-1100mm, Thickness: ≤65mm
