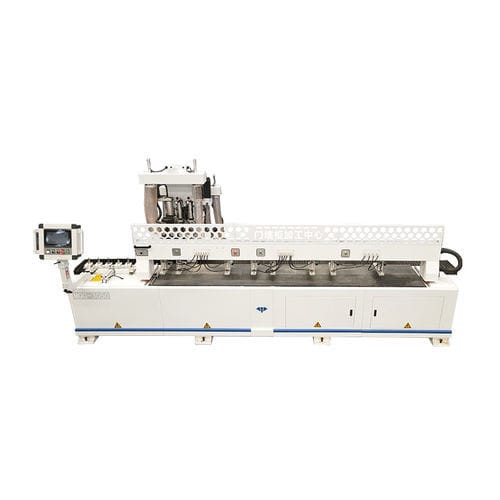

Wood drilling and routing machine EM610

with automatic tool changer

Product Overview: EM610 cabinet and door wood drilling machine is specially designed for the furniture making industry. It can process hinge holes, hanging code gaps, lamello, connectors, door lock hole slots, handle-free slots, crabapple slots, lamp slots, sliding door pulley slots, straightener slots, and more. Features: - Equipped with an 8-tool automatic tool change magazine for quick tool switching according to different process requirements. - Tool setting instruments in both horizontal and vertical directions, providing 2x higher accuracy and 1x faster speed than manual tool setting. - Automatic plate thickness measurement function, allowing the tool to adjust automatically according to the actual thickness of the plate, with detection error less than 0.1mm. - 8 sets of pressing cylinders with an easy-to-move pressing device to prevent plate damage and running. - QR code wireless scanner for automatic processing data acquisition. Parameters: - Model: EM610 - Processing length: 250-3050mm - Maximum processing width: 180mm - Minimum processing width: 50mm - Processing thickness: 10-60mm - Control system: Blue Elephant customized control system - Main Spindle: 5.5KW Changchuan ISO ATC spindle - Horizontal spindle: 2*4.5KW Jester air cooling spindle - 45° Lamello spindle: 2.2KW Changchuan right-angle spindle - 45° saw blade spindle: 4.5KW Jester air cooling spindle - Servo motor: 850W Delta servo motor - Guide rail: Taiwan SHAC Y axis 30#, X/Z axis 25# - Rack: Taiwan Jingter M2 - Screw: Z axis 3205, X axis 2510 - Reducer: Japan SHIMPO 1:8 - Inverter: 7.5KW Fuling Inverter + 2.2KW - Machine power: 12KW - Machine weight: 2000kg Application: Suitable for processing hinge holes, hanging code notches, Lamino slots, IF connectors, top and bottom hinge grooves, door lock slots, embedded grooves for tatami mats, handle-free slots, begonia slots, light slots, sliding door pulley slots, straightener slots, staggered sliding door slots, and edge handle slots on workpieces such as door panels, wardrobe door panels, wall panel fasteners, etc. FAQ: - What processing operations can the cabinet and door drilling machine perform? Hinge hole, hanging code notch, lamino, IF connector, top and bottom hinge slot, door lock hole slot, tatami embedded slot, handle-free slot, crabapple slot, light slot, sliding door pulley slot, straightener slot, etc. - What materials are suitable? Various wood, composite materials, and some plastic materials. - What is the processing size range? 250*50mm to 3050*180mm. Warranty: 12-month limited warranty for the entire machine (extended warranties available for major parts). Supply Ability: 500+ units in stock. After-sale Service: Free lifetime technical support online, overseas service. Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards). Technical Specifications (Summary): - Model: EM610 - Processing length: 250-3050mm - Processing width: 50-180mm - Processing thickness: 10-60mm - Main spindle: 5.5KW Changchuan ISO ATC - Horizontal spindle: 2*4.5KW Jester air cooling - 45° Lamello spindle: 2.2KW Changchuan right-angle - 45° saw blade spindle: 4.5KW Jester air cooling - Servo motor: 850W Delta - Guide rail: Taiwan SHAC Y axis 30#, X/Z axis 25# - Rack: Taiwan Jingter M2 - Screw: Z axis 3205, X axis 2510 - Reducer: Japan SHIMPO 1:8 - Inverter: 7.5KW Fuling + 2.2KW - Machine power: 12KW - Machine weight: 2000kg
