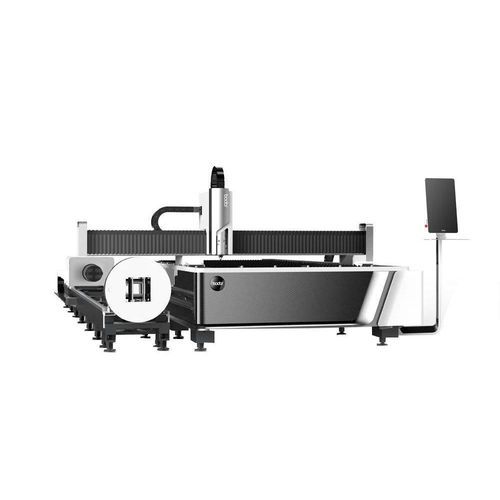

Fiber laser cutting machine AT seriesfor metaltubesheet
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- tube, sheet
- Other characteristics
- automatic, high-precision, high-speed, high-performance, with servo-motor, modular, pneumatic, combined, with optical registration
- X travel
3,048 mm, 4,000 mm, 6,100 mm
(120 in, 157.48 in, 240.16 in)- Y travel
1,524 mm, 2,500 mm
(60 in, 98.43 in)- Z travel
100 mm
(4 in)- Cutting speed
100 m/min
- Acceleration
14.72 m/s²
(48.29 ft/s²)- Overall length
8,641 mm
(340 in)- Maximum width
3,870 mm, 4,879 mm
(152 in, 192 in)- Height
1,858 mm, 1,861 mm, 2,103 mm
(73 in, 73 in, 83 in)- Accuracy
0.03 %
- Change time
2 s
Description
Overview
Key selling points
Structural & mechanical improvements
Machine technologies & protections
Warranty & after-sales
Technical specifications
- Combo sheet & tube fiber laser cutting machine Bodor AT series — entry-level platform combining sheet and tube cutting in a single unit to reduce capital expenditure and floor space.
Key selling points
- Cost-effective: replaces separate sheet and tube machines to lower investment and footprint.
- Easy cutting: remnants layout and automatic cutting-parameter matching simplify setup and reduce trial-and-error.
- Efficient production: fast transmission and high-performance bus servo motors enable leading dynamic response and higher throughput.
- Intelligent guidance: visual sample comparison and parameter auto-match reduce operator time and stabilize process results.
Structural & mechanical improvements
- 3rd‑generation mortise‑and‑tenon welded bed frame: increased rigidity and structural strength for improved stability and accuracy.
- Aerospace aluminum beam: lightweight design reduces moving mass and improves stiffness for better dynamic performance.
- Modular worktable structure: simplifies maintenance, enhances safety and reduces downtime.
Machine technologies & protections
- Laser head intelligent collision avoidance: servo‑following sensors and path‑avoidance algorithms provide 360° real‑time obstacle detection to lower collision risk.
- Fast pneumatic chucks: direct‑cylinder push design for simple, quick clamping (as fast as ~2 seconds) and easy maintenance.
- Mineral cast anti‑burn plate: heat‑resistant, non‑conductive surface that resists deformation and extends service life.
- Remnants layout & sheet‑edge anti‑vibration features: improve nesting efficiency and cut quality.
- Optional Scanning Cutting (SCAN): scanning cutting mode increases energy absorption in the cutting zone for reliable processing of highly reflective sheets.
Warranty & after-sales
- Eligible for Bodor 5‑Year Warranty program (manufacturer warranty options indicated on the product page).
Technical specifications
- Series / model: AT series
- Product type: Combo sheet & tube fiber laser cutting machine
- Cutting capability: integrated sheet and tube cutting
- Cutting-parameter auto-match: visual sample comparison and automatic parameter matching
- Drive / motion: high‑performance bus servo motors
- Max. acceleration: up to 1.5G (manufacturer stated)
- Bed frame: 3rd‑generation mortise‑and‑tenon welded bed frame
- Aerospace beam: aluminum beam for weight reduction and increased stiffness
- Chuck system: fast pneumatic chucks, clamping ≈2 seconds
- Laser head protection: servo‑following sensors and path avoidance algorithms
- Worktable: modular structure to reduce maintenance costs
- Anti‑burn surface: mineral cast anti‑burn plate
- Optional: Scanning Cutting (SCAN) for high‑reflective materials
- Typical benefits: reduces machine count, simplifies parameter setup, increases productivity and cut quality
