Fiber laser cutting machine CT

for metaltubesheet

Overview

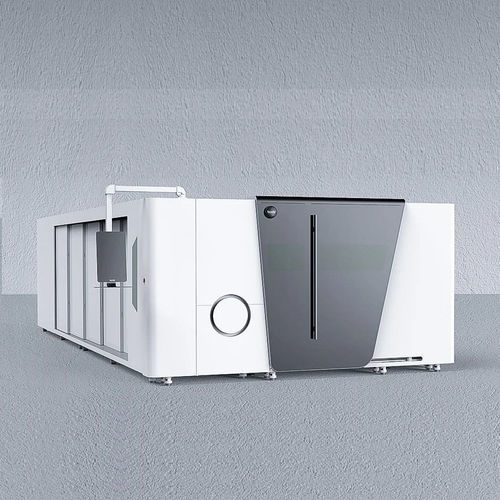

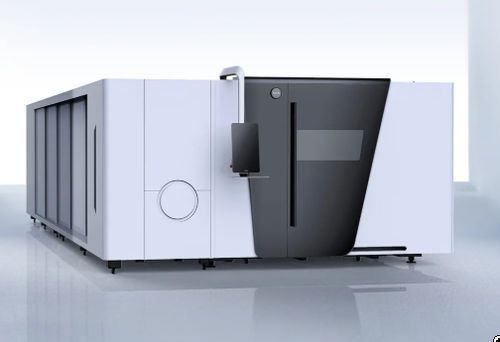

Classic Model | Sheet & Tube Laser Cutting Machine. The CT Series is a combo sheet-and-tube fiber laser cutting machine supplied with a full protective enclosure, designed to offer both sheet and tube cutting capability in a single unit.

One Smart Investment for Diverse Needs

• High Standard: Manufactured to meet stringent European standards. The CT Series with protective cover provides improved safety and extended machine longevity while delivering consistent cutting quality.
• Efficient Production: Equipped with fast transmission and high-performance bus servo motors, the CT Series provides leading dynamic performance to significantly increase processing efficiency.
• Cost-Effective: Combines sheet and tube cutting functions in one machine, reducing the need for multiple units and offering better overall cost-effectiveness for mixed production environments.

Intelligent Guidance
Cutting Parameter Auto-Match: Visual comparison of sample parts and automatic matching of cutting parameters improves cutting quality and reduces labor input and setup time.

3rd-Generation Mortise-and-Tenon Welding Bed Frame
Structural improvements increase bed rigidity and strength: rigidity increased by 30% and structural strength enhanced by 25% (data from laboratory analysis). Overall performance is improved relative to the previous generation.

High Dynamic Performance
High-performance bus servo motors deliver industry-leading dynamic behavior. Max. acceleration up to 1.5G enables faster motion and improved throughput for time-critical cutting tasks.

Aerospace Aluminum Beam
The machine structure uses an aerospace aluminum beam design that reduces weight while enhancing rigidity: weight reduced by approximately 30% and structural strength improved by about 25% compared with previous designs.

Laser Head — Intelligent Collision Avoidance
Self-developed servo-following sensors and path-avoidance algorithms provide real-time 360° obstacle sensing around tube edges and laser head positions, reducing the risk of collisions and improving operational safety.

Remnants Layout (Remnant Nesting)
By taking a photo of remnants and uploading it to the system, remnant layout becomes a one-click task: automatic identification and corner location speed up remnant nesting and material utilization.

Remnants / Cutting Automation & Technology

• Remnants Layout: automatic identification and corner detection for fast remnant nesting.
• Fast Pneumatic Chucks: high-speed clamping solutions to reduce cycle times.
• Intelligent Gas Pressure Controlling: optimized gas pressure management for consistent cutting quality.
• Bodor+ (software ecosystem): connectivity and production management features to integrate machine, MES and IoT functions.

Mineral Cast Anti-Burn Plate
The mineral cast anti-burn plate is heat-resistant and electrically non-conductive. It resists deformation, is easy to clean and maintain, and ensures longer service life of the work table compared with conventional anti-burn plates.

Laser Scanning Cutting (Optional)
Laser scanning cutting raises the energy absorption rate within the cutting area for improved cut quality. It enables efficient cutting of high-reflectivity materials: the process is largely unaffected by back reflection, enabling true batch processing of reflective sheets.

Photo Demonstration / Real Equipment
Real-equipment photo demonstrations are available showing the CT Series in production layouts for both sheet and tube cutting.

Warranty
5-year warranty program available.

Caractéristiques / spécifications techniques

• Marque: Bodor
• Dénomination commerciale: CT series
• Type de machine: Combo sheet & tube fiber laser cutting machine with full protective enclosure
• Fonctions principales: simultaneous sheet and tube cutting capability; remnant layout; laser scanning cutting (optional)
• Structure: 3rd-generation mortise-and-tenon welding bed frame; rigidity +30%; structural strength +25%
• Performance: overall performance improved (approx. +30% vs previous generation); max. acceleration up to 1.5G
• Moteur et entraînement: high-performance bus servo motors delivering leading dynamic performance
• Laser head: intelligent collision avoidance with servo-following sensors and path-avoidance algorithms
• Workbed: mineral cast anti-burn plate — heat-resistant, non-conductive, easy to clean
• Beam: aerospace aluminum beam — approx. 30% lighter and ~25% stronger (structural improvement)
• Material handling & automation: support for remnants nesting, fast pneumatic chucks and automated sheet/tube handling options
• Software & connectivity: Bodor+ ecosystem (connectivity, MES and IoT integration)
• Warranty: 5-year warranty program available
