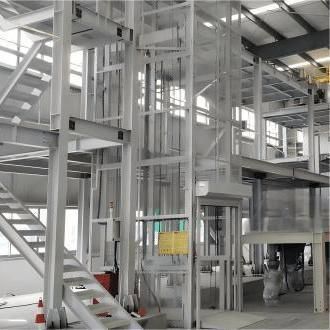

Hydraulic goods lift SJD1.0-7.5

for the food industryfor the pharmaceutical industryfor pallet

This freight elevator features a rolling shutter door and double-swing guardrail door (both W1500 × H2200 mm), with a fully enclosed structure and reserved doorway on the 3F exit. Built free of lead, zinc, and copper in both materials and paint, it operates via a low-noise hydraulic pump station (≤ 85 dB) and includes a three-color sound-and-light alarm. The platform size is 1500 × 2000 mm with an overall footprint of 2100 × 2100 mm, through-loading along the 1500 mm side, and a small loading ramp (1500 × 800 mm) for pallet jacks. - Model: SJD1.0-7.5 - Platform Dimensions: 1500*2000mm - Loading Capacity: 1000KG - Travel Height: 7500mm - Stops: 3 stops, 3 stations - Structure: 2 cylinders, 4 columns - Rolling Shutter Door Size: 1500*2200mm - Ramp Size: 1500*800mm - Installation Method: Ground installation, no pit Note: The above parameters are for reference only, all products can be customized 1. Fully Enclosed Safety Structure The entire unit is enclosed on all four sides to ensure operational safety and prevent accidental access to moving parts. The 3F landing is designed with a reserved doorway as per the supplied engineering drawings, allowing seamless integration into the building layout. 2. Eco-Friendly and Lead-Free Manufacturing All structural materials and paint coatings are free from lead, zinc, and copper, ensuring compliance with environmental and workplace safety standards, and making it suitable for sensitive environments such as food, pharmaceutical, or clean-room applications. 3. Quiet and Reliable Hydraulic System Powered by a low-noise hydraulic pump station with a noise level not exceeding 85 dB, the system delivers smooth lifting performance while minimizing noise disturbance in the workplace. 4. Integrated Safety Alarms Equipped with a sound-and-light alarm system and a three-color indicator lamp, providing clear visual and audible alerts for operational status and safety warnings. 5. Convenient Loading and Unloading The platform measures 1500 × 2000 mm with an overall machine footprint of 2100 × 2100 mm, supporting through-loading along the 1500 mm side. A small loading ramp (1500 × 800 mm) is included for pallet jacks, enhancing operational convenience.
