Hydraulic goods lift

for the construction industryfor warehouseindustrial

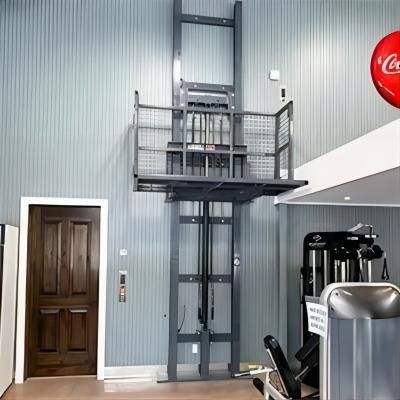

The two-post cargo lift, also known as a wall-mounted goods lift, is perfect for efficiently moving goods in tight spaces with lower capacity requirements. It offers quick, convenient, and safe access to different levels within buildings, making it ideal for warehouses, factories, and commercial settings. With its compact design and reliable performance, this lift system enhances productivity while ensuring secure goods transportation. Model: 2 Post Lift | Wall-mounted Cargo Lift Lifting Capacity: 300-1000kg (661-2204lbs) Platform Size Min.: 800*900mm (2.9*2.6ft) Platform Size Max.: 1200*1500mm (4.9*3.9ft) Lifting Height: 2400-6000mm (7.9-19.7ft) Pit Depth: 200mm Application: Warehouses/Factories/Commercial Buildings Features: - Working Platform: Constructed with checkered steel plate for anti-skid properties, ensuring the safety of operators and goods during operation. - Guide Rails: Made from high-quality Q235 or Q345 H-shaped steel, meeting national standards for precise dimensions, strength, straightness, and minimal welding deformations. - Leaf Chains: Utilizes standard leaf chains 1234 or 1044, offering high strength, minimal stretch, extended service life, and reduced safety risks compared to other chains. - Safety Wire Rope: Equipped with 4 safety wire ropes (diameter 8mm~12mm) to secure the platform in case of chain failure, preventing sudden drops and ensuring operator safety. - Hydraulic Power Unit: Features a compact and lightweight design, yet provides high efficiency, working pressure, and reliability without leaks, ensuring smooth operation. - Hydraulic Cylinder: Designed for heavy-duty performance with smooth operation, capable of handling heavy workloads with durable components and leak-free operation. - Hydraulic Oil Pipe: Utilizes high-pressure pipes with double expanded metal protection, offering resistance to oil, water, and high pressure, along with wear resistance and tensile properties. - Electromagnetic Anti-explosion Valve: Incorporates a mechanical explosion-proof design with an explosion-proof valve in the hydraulic system, ensuring that even if the tube breaks due to external forces, the platform remains secure to prevent sudden drops, enhancing overall safety. Available Options: Enhanced Protection, Enhanced Performance! Our cargo lift solutions offer a plethora of customizable options to suit diverse needs. From mesh enclosures and floor meshes to ground installations for sites without pits, we’ve got you covered. Ensure added safety with features like roller shutter doors, electric locks, and motor cover boxes for pump stations and controls. With our comprehensive range of options, rest assured your cargo lift will not only perform exceptionally but also provide superior protection for both operators and goods. - Roller Shutter Door - Fully Mesh Cabin - Mesh Enclosure - Floor Mesh - Loading Ramp - Overload Warning Device Application: Warehouses, Factories, Commercial Buildings - Advanced Manufacturing - Aerospace & Defence - Entertainment - Automotive - Iron & Steel Industries - Power-Generation - Warehouse Logistics - Transportation
