Container straddle carrier GKY series

electricfor heavy loadsself-propelled

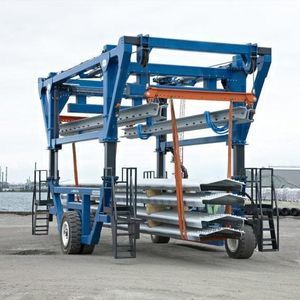

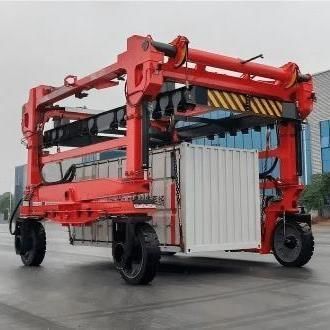

The electric straddle carrier is a highly efficient container handling device powered by electricity. It features a gantry-style frame that operates by straddling containers. Equipped with hydraulically controlled specialized spreaders, it enables precise container lifting, placement, and retrieval from trucks, rail flatcars, or the ground. The rubber-tire chassis eliminates the need for fixed tracks, offering excellent mobility and flexibility for use in yards, warehouses, and similar locations, surpassing traditional gantry cranes in adaptability. Features - Zero Emissions: Battery-powered, with no operational emissions. - Low Noise: Quieter operation, reducing noise pollution. - Cost-Efficient: Lower electricity costs compared to fuel. - Low Maintenance: Simple upkeep minimizes downtime. - Minimal Vibration: Ensures a comfortable working environment. - Odor-Free: No diesel smell, improving workplace conditions. Specification - Basic Parameters: GKY3532E, GKY6037E, GKY8037E - Capacity: 35T, 60T, 80T - Dimensions (L*W*H): 7100*5100*6050mm, 12000*5600*6400mm, 12000*5900*6400mm - Effective inner width: 3200mm, 3700mm - Wheel Base: 6000mm, 6500mm, 7500mm - Duplex Lifting Height: 1550mm, 1700mm - Min. Ground Clearance: 240mm, 300mm - Tire Quantity: 4, 8 - Dead weight (not contain spreader): 20T, 35T, 43T - Permanent Magnet Synchronous Motor: 80KW, 90KW, 120KW - Lithium Battery: Lithium Iron Phosphate - Travel Pump (Closed): Linde/Danfoss - Travel Speed: 5km-7km/h, 3km-5km/h - Turning Radius: 7000mm, 10000mm, 12000mm - Empty-load/full-load Gradeability: 5%/3% - Tires: Solid Tires - Lifting Tools: Automatic Spreader, Oversized Load Spreader Applications - Green Energy - Coils/Cable Drums - Structural Steel - Modular Construction - Manufacturing - Containers - Concrete
