Electric lifter

platformlongitudinalspray booth

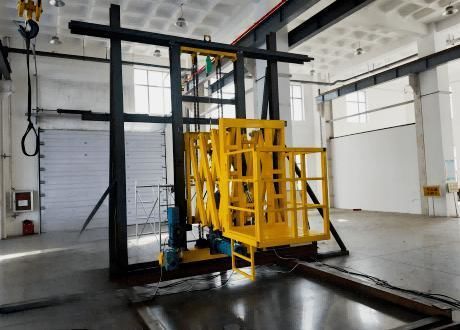

Our 3-axis paint booth personnel lifts are designed to replace ladders and scaffolding, providing a safe and efficient solution for manufacturing and finishing processes in paint, powder coating, and prep industries. The operator platform offers three-dimensional movement: vertical lifting (Y-axis), horizontal extension (Z-axis), and longitudinal travel (X-axis) on a fixed guide rail system. Controls are conveniently located on the front railing and floor of the platform, allowing full operation of all axes, along with emergency stop and emergency descent functions. Built for flexibility, our lift can be customized with various options to meet specific application needs, enhancing efficiency, safety, and accessibility in industrial painting environments. Specification: - Paint Booth Dimensions: 9900*9600*7850mm - Operator Platform Dimensions: 900mm*800mm*1050mm - Operator Platform Capacity: 200KG - X-axis Travel Distance: 9900mm - X-axis Travel Speed: 0-12m/min - Y-axis Lifting Height: 550-5800mm - Y-axis Lifting Speed: 1.5-4.5m/min - Z-axis Travel Distance: 1600mm-4300mm - Z-axis Travel Speed: 1.5-4.5m/min Features: 1. Full 3-Axis Mobility – Enables precise horizontal (X), vertical (Y), and forward/backward (Z) movement for comprehensive work area coverage. 2. Adjustable Speed Control – Equipped with inverters for speed adjustment, ensuring precise and efficient operation. 3. Explosion-Proof Design – All key components, including motors, gearboxes, and limit switches, are certified with II2G Ex db IIB T4 Gb, making it safe for hazardous environments like paint booths. 4. High-Quality Power System – Features ABB explosion-proof motors and SEW explosion-proof gearboxes, ensuring reliable and stable performance. 5. Durable and Robust Structure – Built with high-strength frames and rail systems for long-term stability and durability. 6. Precise Positioning – Explosion-proof limit switches ensure safe and accurate movement in all directions. 7. Independent Drive System – Each axis (X, Y, Z) has a dedicated drive unit, enhancing stability and ease of maintenance. 8. Thermal Protection System – Integrated thermal protectors prevent motor overheating, extending equipment lifespan.
