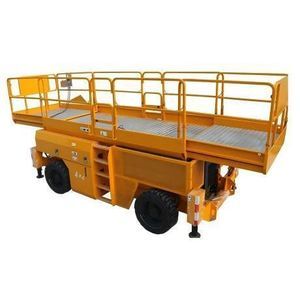

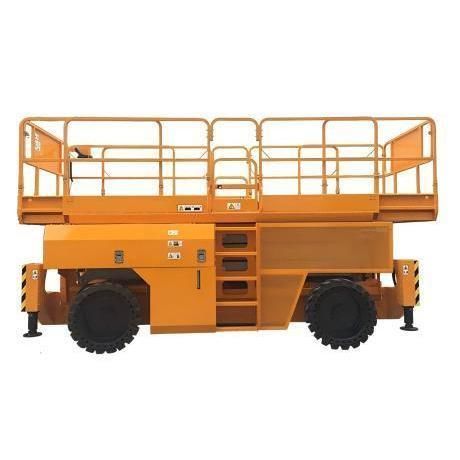

Self-propelled scissor lift G-GTJZ10RT

dieselindoor/outdoorfor construction

The G-GTJZ10RT is a 10-meter self-propelled diesel scissor lift with a working height of up to 12 meters and a maximum load capacity of 1,150 kg. Designed to tackle challenging and high-risk tasks with ease, it is ideal for both indoor and outdoor applications such as cleaning (ceilings, curtain walls, windows, eaves), billboard installation and maintenance, lighting and traffic signal work, as well as construction projects. Its compact, flexible, and efficient design allows it to replace traditional scaffolding, helping you reach required heights safely while saving time and costs. - Parameters - Model: G-GTJZ10RT - Specifications - Max. Working Height: 12 m - Max. Platform Height: 10 m - Platform Load Capacity: 1150 kg - Extension Platform Load Capacity: 230 kg - Length (Without/With Outriggers): 3.94 / 4.31 m - Width: 2.28 m - Stowed Height: 2.88 m - Stowed Height (With Folded Rails): 2.12 m - Wheelbase: 2.77 m - Minimum Ground Clearance: 0.3 m - Platform Dimensions (L × W): 3.9 × 1.83 m - Platform Extension Length: 1.2 / 1.45 m - Minimum Turning Radius: 3.05 / 6.07 m - Travel Speed (Stowed): 6.3 km/h - Travel Speed (Raised): 1.1 km/h - Gradeability: 26.6° (50%) - Solid Tire Size: 33×12-20 - Weight: 6850 kg - Fuel Tank Capacity: 110 L - Hydraulic Oil Tank Capacity: 130 L - Drive Mode: 4×4×2 - Engine: Yanmar - Engine Rated Power: 35.5 kW / 2600 rpm - Features - Smart Lower Control Display: Displays fuel level, engine RPM, and accumulated working hours for efficient monitoring and maintenance. - Multi-Function Upper Control: Allows control of lifting, lowering, driving, steering, one-touch leveling, and platform extension/retraction. - Dual-Sided Extendable Platform: The platform can extend on both sides, expanding the working area to meet various operational needs. - Automatic Self-Leveling Hydraulic Outriggers: Ensures stability and safety on uneven ground surfaces. - Foldable Guardrails: Reduce the overall machine size for easier transport and storage. - Fully Enclosed Hydraulic Hoses: Prevent accidental damage and reduce costly hose replacements. - Yanmar Engine: Modular design with pull-out maintenance access significantly reduces servicing time. - Strong Climbing Capability: With a 50% gradeability, it handles steep slopes and tough jobsite conditions with ease.
