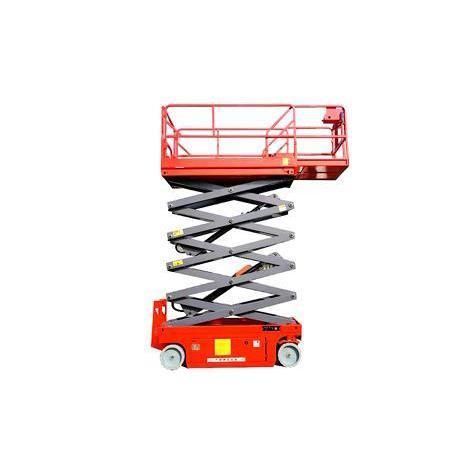

Self-propelled scissor lift G-QZX-8

battery-poweredelectricoutdoor

The 8-meter Self-Propelled Electric Scissor Lift is a compact and efficient aerial work platform designed for both indoor and outdoor use. It offers a platform height of 8 meters, providing a working height of up to 10 meters, and is powered by a rechargeable battery for quiet, emission-free operation. With a load capacity of around 230-450 kg and features such as self-propelled mobility, tilt protection, pit protection, and an explosion-proof system, this lift is ideal for maintenance, installation, and other elevated tasks in various environments. - Parameters - Model: G-QZX-8 - Specifications - Max. Working height: 10m - Max. Platform height: 8m - Platform Length: 2.27m - Platform Extension Length: 0.9m - Platform Width: 1.12m - Machine Height: 2.35m - Machine Height – Rails Folded: 1.8m - Machine Length: 2.43m - Machine Width: 1.21m - Wheelbase: 1.87m - Tire: φ381*127 - Productivity - Max. platform occupancy: 4 - Lift capacity: 450kg - Lift capacity – extension: 113kg - Drive speed – stowed: 3.5km/h - Drive speed – raised: 0.8km/h - Gradeability – stowed: 25% - Turning Radius – Inside: 0m - Turning Radius – Outside: 2.40m - Retractable Table: The platform can be extended forward by 90 cm, expanding the working range to handle special processing and operational requirements. - Intelligent Control System: Integrated with a control handle, horn button, and turtle speed switch, the system allows easy lifting and platform movement, providing smooth and simple operation for the user. - Tilt Protection System: An automatic alarm system prevents the lift from operating when unsafe conditions are detected. It protects the safety of the operator and displays fault codes for quick diagnostics. - Pit Protection System: When the lift encounters uneven or bumpy ground, the system adjusts lifting and movement to ensure stability. It also displays fault codes for monitoring safety and operation. - Explosion-Proof System: A built-in explosion-proof system prevents the platform from suddenly falling due to an oil pipe burst, providing added protection for workers at elevated heights. - Self-Propelled Functionality: The ability to move the platform while elevated increases efficiency, allowing workers to reposition the lift without lowering it. - Quiet and Emission-Free Operation: Electric power ensures the lift operates quietly with zero emissions, making it suitable for indoor environments, especially in sensitive areas like clean rooms and factories.
