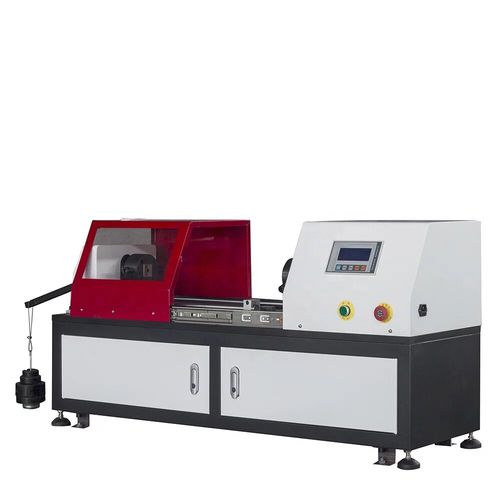

Torsion testing machine HEZ series

qualitymanualfor wire ropes and strands

HEZ Series Metal Wire Torsion Tester is mainly used to test the plasticity of metal wires and ropes under torsion condition. Surface flaws of steel wires may be shown during the testing process. It is most suitable for quality inspection of departments related to steel wire. The revolution is displayed on a 4-digit LED. Max. displayed revolution is 999.9. The revolution value is automatically held at the break of specimens. It conforms to standards of ASTM A938, ISO7800. • Specifications: • Work Method : Auto-loading • Max. Clamp metal wire diameter （mm） : Ф0.1-Ф1.0 : 1-3 : Ф1-Ф6 : Ф3-Ф10 • Parallelism of the full moving guide : ≤0.2 • Distance between the grips (mm) : 200 : 320 : 500 : 500 • Rotation speed adjusting range (r/min） : 60/90/120/180/300 : 60/90/120/180/300 : 60/90/120/180 : 60/90/120/180 • Torsion speed error (%) : ＜±10% • Min. number of circle values : 0.1 • Two chuck alignment（mm) : ＜Ф0.4 • Jaw hardness（HRC) : 50-65 • Weights error (%) : ±0.5 • Work Noise （dB) : ≤70 • Min. revolutions reading values（r） : 1 • Power Supply : AC 220V±10%,50HzAccessories: • 1, : Frame : 1 set • 2, : LCD controller : 1 pc • 3, : Three-phase asynchronous system : 1 pc • 4, : chuck : 1 pc • 5, : weight used on a balance : 1 pc • 6, : Operation manual : 1 pc • 7, : Packing list : 1 pc • 8, : Certificate : 1 pc
