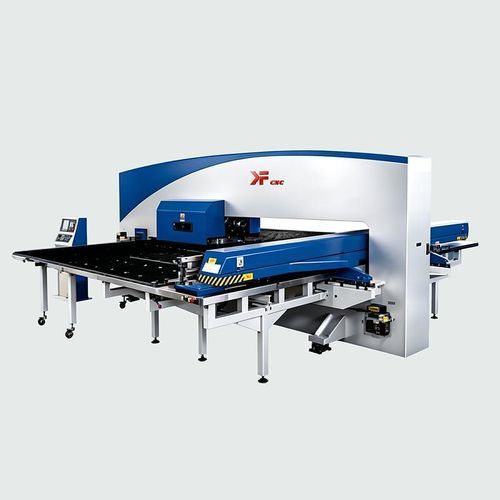

Electric press SPS3050electronicpunchingforming
Add to favorites
Compare this product
Characteristics
- Operation
- electric, electronic
- Function
- forming, punching, marking
- Applications
- for sheet metal
- Structure
- ram, rotating table
- Control
- CNC
- Other characteristics
- servo-driven, rotary
- Force
30.58 tf
- Opening
89 mm
(4 in)- Rate (strokes/min)
1,500 p/min
- Stroke
32 mm
(1.26 in)- Table width
1,500 mm
(59 in)- Table length
5,000 mm
(197 in)- Working speed
1,333.3 mm/s
- Weight
17 t
(19 us ton)- Overall length
550 cm
(217 in)- Overall width
526 cm
(207 in)- Overall height
225 cm
(89 in)
Description
Short Description
Key Modules / Highlights
Configure List
Main Technical Specification
TURRET LAYOUT (32 Tool Stations)
Characteristics / Technical specifications
- Equipped with FANUC CNC control and FANUC digital AC servo motors for precise motion control
- O-type welded steel frame with tempering treatment for rigidity and minimal deformation
- Advanced mechanical servo ram-head with maximum marking frequency up to 1800/1500 cpm
- Second-positioning function to eliminate dead-zone processing
- Drive and transmission components from international brands (REXROTH ball screw, THK linear guide) for high precision
- Major-brand pneumatic and electrical components
- Precision thick turret made from HQ600 nodular cast iron, 80 mm height, with self-lubricating guiding for extended tool life
- Breakpoint continuous punch function
- Special forming tools for rolling, tapping, forming and marking operations
Key Modules / Highlights
- FANUC CNC system and AC servo system
- Advanced mechanical servo ram punching unit
- Automatic lubricating device
- FANUC servo motors
- Precision thick turret
- Warp sheet metal detection device
Configure List
- 1 | FANUC 0i-P special system | 1 set | FANUC (Japan)
- 2 | AC servo amplifier | 4 sets | FANUC (Japan)
- 3 | AC servo motors | 4 sets | FANUC (Japan)
- 4 | Main motor | 1 set | ESTUN / GOLDEN AGE
- 5 | Main motor servo | 1 set | ESTUN / PHASE
- 6 | Precision ball screw assemblies | 2 sets | REXROTH (Germany)
- 7 | Precision linear roller rail | 3 sets | THK (Japan)
- 8 | Precision screw pillow | 4 sets | NSK (Japan)
- 9 | Pneumatic parts | 1 set | SMC (Japan)
- 10 | Approach switches | 11 | TURCK / BALLUFF (Germany)
- 11 | Lubrication device | 1 set | BIJUR
- 12 | Tools with machine | 32 sets | China
- 13 | Auto-program software | 1 set | RADAN (UK)
- 14 | Water chiller | 1 set | China
Main Technical Specification
- 1. Nominal Force: 300 KN
- 2. Max. Punch Size: Φ88.9 mm
- 3. Transmission Type: Servo
- 4. Frame Construction: O-frame
- 5. Max. Sheet Size (One reposition): 1500×5000 mm
- 6. Max. Sheet Thickness: 6 mm
- 7. Max. Sheet Weight: 150 kg
- 8. Punching Accuracy: ±0.1 mm
- 9. Ram Stroke: 32 mm
- 10. X/Y Traverse Length: 2500/1500 mm
- 11. Max. Punching Frequency: 1500 min-1
- 12. Max. Positioning Speed: X=80 m/min, Y=64 m/min
- 13. Turret Rotation Speed: 30 r/min
- 14. Number of Tool Stations: 32 set
- 15. Number of Floating Clamps: 3 set
- 16. CNC System: FANUC
- 17. Number of Controlling Axis: 5 axis
- 18. Monitor: 10.4 Inches Color
- 19. Machine Dimensions (Approx): 5500×5260×2250 mm
- 20. Machine Weight (Approx): 17 T
TURRET LAYOUT (32 Tool Stations)
- A: 16 — 3–12.7 mm
- B: 10 — ≤31.7 mm
- C: 2 — ≤50.8 mm
- D: 2 — ≤88.9 mm
- IT: 2 — ≤50.8 mm
Characteristics / Technical specifications
- Model: SPS3050
- CNC system: FANUC 0i-P
- Drive: All-electric servo transmission
- Nominal force: 300 KN
- Max. punch diameter: Φ88.9 mm
- Max. sheet size (one reposition): 1500×5000 mm
- Max. sheet thickness: 6 mm
- Punching accuracy: ±0.1 mm
- Tool stations: 32
- Floating clamps: 3
- Controlling axes: 5 axis
- Approx. weight: 17 T
