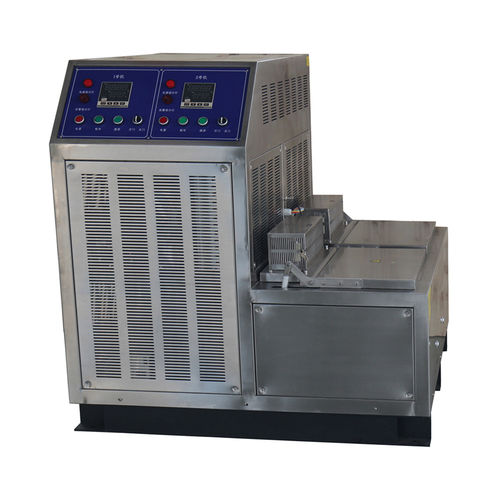

Thermostatic test chamber CDW-802XTtemperaturecoolingfor materials testing machines
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic
- Controlled parameter
- temperature
- Test type
- cooling
- Product applications
- for materials testing machines
- Application domain
- for quality control
- Configuration
- floor-standing, compact
- Options and accessories
- with sample preparation
- Other characteristics
- low-temperature
- Temperature
Max.: 30 °C
(86 °F)Min.: -80 °C
(-112 °F)- Power
8,000 W
- Interior length
350 mm
(13.78 in)- Interior height
150 mm
(5.91 in)- Interior depth
300 mm
(11.81 in)- External length
1,135 mm
(44.7 in)- External height
1,200 mm
(47.24 in)- External depth
1,100 mm
(43.31 in)
Description
Usages and characteristics
The CDW-802XT low-temperature impact testing instrument is a compressor refrigeration equipment newly developed by our company according to the requirements of JB5376-91 "Technical Conditions for Low Temperature Bath" and GB/T 229-2007 "Charpy Notch Impact Test Method for Metal Materials". The equipment achieve automatic uniform cooling and constant temperature of the sample, which can fully meet the national standard GB/T 229-2007, American standard ASTM E23-02a, European standard EN10045 , ISO148 and other relevant standards specified in the relevant temperature control indicators. The device can realize digital display temperature value, automatic temperature control, automatic timing, automatic alarm and other functions.
Main technical parameters
Temperature range: Room temperature~ -80 ℃
Temperature accuracy: ± 0.5 ℃
Uniformity: 1℃
Cooling speed (when room temperature 25℃): Room temperature ~ 0 ℃ about 1.2 ℃ / min
0 ℃ ~ -40 ℃ about 1.0 ℃ / min
-40 ℃ ~ -60 ℃ about 0.9℃ / min
-60 ℃ ~ -80 ℃ about 0.8 ℃ / min
Maximum external size: 1135 *1100*1200mm (l* w * h)
Cooling tank size: 350 * 300 * 150mm (l * w* h) 2pcs
Effective size: 250 * 200 * 140mm (l * w * h)
Cooling medium: 99% ethanol or other ice-free liquid, about 15L*2 pcs
Working power: AC 380V, 50Hz, 8kW
Operating environment temperature : 5℃~30 ℃
