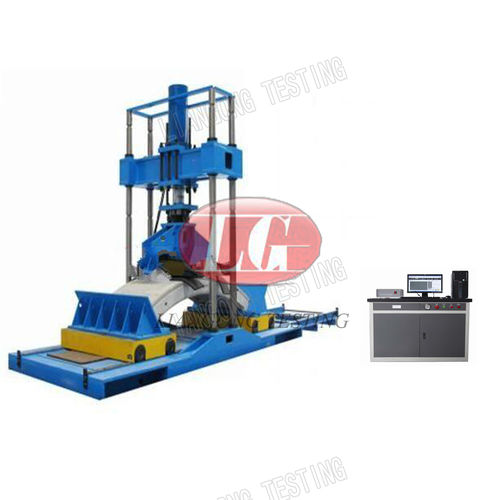

Tensile testing machine WGS-1000B

bendingcomputer-controlledconcrete

I. Equipment Usage This testing machine is designed and manufactured according to GB/T 22082-2017 "Reinforced Concrete Segments" and CJJ/T164-2011 "Shield Tunnel Segment Quality Inspection Technical Standards" and other industry or national standards. It is mainly used for determination of segment bending resistance and pull out resistance. Its structural performance fully meets the requirements of test specifications. Replacing the corresponding attachments can measure the crack and damage load values of the segments, and test the deflection and horizontal displacement of the segments under load. Or measure the maximum pull-out force of the segment lifting bolt and determine its pull-out resistance performance. This testing machine has the characteristics of stable performance, accurate testing, and convenient testing. etc. It is widely used in the production and use of reinforced concrete segments, quality supervision, scientific research institutes and other departments. II. Main Technical Parameters 1. Maximum test force: 1000kN 2. Test force measurement range: 1%～100% F.S 3. Force value accuracy: ≤±1% (better than level 1) 4. Test force resolution: 0.05KN 5. Adjusting range of loading speed: 0.1～25KN/s 6. Deformation measurement range: 0～30mm 7. Deformation measurement accuracy: 0.01mm collected by computer 8. Test speed: 0.5mm/min～50mmm/min stepless speed regulation 9. Maximum effective test space: 1500mm adjustable 10. Column spacing: 2200mm 11. Cylinder stroke: 250mm
