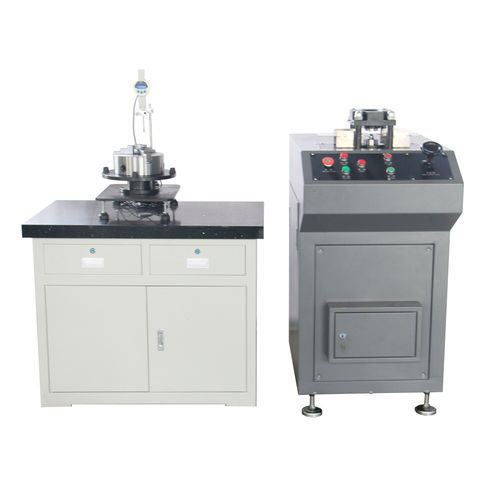

Universal testing machine LGR-100A

computer-controlledmaterialfor sheet metal

1. Purpose: With the development and progress of production technology, sheets or strips are widely used in various fields such as food, packaging, automobile industry, medicine, etc. Due to the anisotropy of the thin plate or strip, the cup mouth of the deep-drawn product has a wavy bulge, which is called a human ear because it resembles a human ear. For deep-drawn products, earing hinders further processing, so the smaller the earing, the better, and the indicator for measuring the size of the earing is the earing rate. Accurate ear rate data has great guidance for production and subsequent processing. Our company provides an automatic thin plate ear rate tester, which can quickly and accurately detect the thin plate ear rate. 2. Performance: At present, the measurement of ear peak height and ear valley height in China is mostly manual hand-held and fixed ear detection round cup. It can reduce the measurement difference between multiple values and manual detection difference, reduce the error of ear rate test, and improve the accuracy. It has the characteristics of accurate measurement, convenient operation and high measurement efficiency. It meets the test requirements of GBT24183-2021 "Metallic Materials-Sheet and strip-Earing test". 3. Main technical parameters and specifications: 3.1. Operating temperature: 10-35℃; 3.2. There is no large vibration source nearby and no strong electromagnetic field; 3.3. There is no corrosive medium in the environment, and pay attention to good ventilation of the electric control box; 3.4. Range of digital dial indicator: 0-50mm; 3.5. Dimensions: 400mm×300mm×590mm; 3.6. Weight of the whole machine: 40kg.
