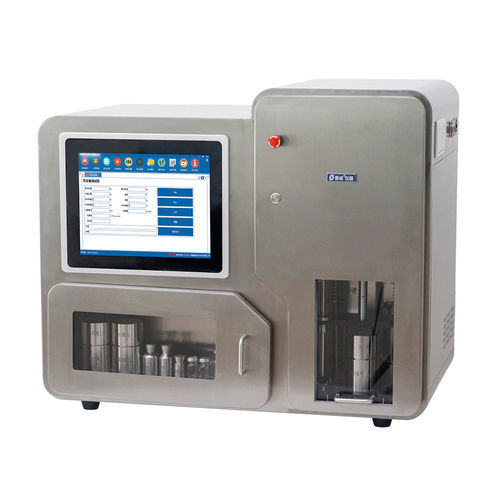

Vacuum decay leak tester MK-2000

for vialsfor ampoulesautomatic

The MK-2000 Non-destructive Leak Tester, also known as the Container Closure Integrity Tester (CCIT), employs non-destructive testing technology to meet the requirements of both vacuum decay and pressure decay testing methods. It is a highly versatile instrument, used for the professional testing of micro-leakage in a wide range of containers, including ampoules, vials, pre-filled syringes, bottles, non-porous pouches, blow fill seal strips medical devices. Product Features: - This instrument is equipped with an industrial all-in-one PC featuring a 10-inch color touchscreen and a graphical user interface (GUI). - Adopting non-destructive testing methods for micro-leakage detection in finished packaging allows samples to be tested without compromising their integrity, reducing the overall cost of testing. - The system can detect small leakage holes (less than 5 microns) and identify larger leakage holes. Based on the detected leakage, the system automatically determines whether the sample meets quality standards. - This instrument employs two core technologies: vacuum decay and pressure decay. - It is capable of detecting leak rates as low as 0.03 cc/min. - The test chamber is constructed from 316 stainless steel, which can be easily replaced by the user to accommodate diverse samples. - Equipped with a micro-printer, the instrument automatically prints test results upon completion. - Standard USB interface. - The instrument is embedded with SAICHENG's latest operating software, featuring a user-friendly interface, intelligent data processing, robust user management, and secure data storage. Test Standards: This test instrument conforms to many national and international standards: USP , YY/T 0681.18-2020. Technical Specifications: - Operator Interface: 10” Color Touch Screen - Test Method: Vacuum Decay and Pressure Decay - Vacuum Degree: <10Pa - Accuracy: 0.25% FS - Measurement Range: 1 ~ 2 micron (standard), 5 micron (optional) - Test Sensitivity: Down to 0.01 cc/min (Approximate hole size 1 micron) - Test Chamber: 316 Stainless Steel (Customization is available) - Air: Required only for automatic test chamber - Test Results/Resolution: Pass/Fail Result in mBar and Pascal units - Vacuum Source: Vacuum Pump - Transducers: Dual transducers - Instrument Dimension: 720 mm (L) x 430 mm (W) x 600 mm (H) - Power Supply: 120VAC 60Hz / 220VAC 50Hz (can be changed to local requirement) - Net Weight: 40 kg Configurations: Instrument, Micro Printer, Test Chamber, Micro Flowmeter, Customized Test Chamber Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
