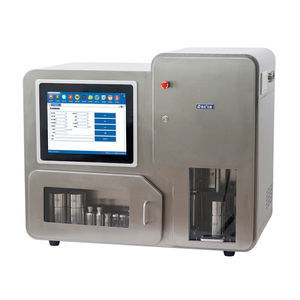

Vacuum leak testing machine MFY-CM

plastic bagsfor the pharmaceutical industryfor packaging

The MFY-CM Leak Tester is professionally designed for the leak testing of various packages for food, pharmaceuticals, medical devices, daily chemical products, electronic components, stationery and other industrial products. Product Features: - 7-inch touch interface is more convenient to operate. - Two test modes-pressure maintaining and pressure increasing can meet different requirements. - Automatic controlling process: vacuum, maintain pressure, replenish pressure, timing, back blow, print, save and upload data. - Equipped with micro-printer, USB interface and PC software. - The units of mbar and kPa can be converted freely. - The instrument saves testing records automatically and the data can be outputted as Excel format. - Users’ grading authority management meets the requirement of GMP. - The testing results are synchronously uploaded to the cloud server for storage and can be browsed. - Bilingual choice of English and Chinese. - The dual back-up of local data and cloud data is attained. Test Principle: Firstly submerge the specimen in the water within the vacuum chamber, and then evacuate the chamber to form differential pressure between the inside and outside of the specimen. The leakage property could be obtained by observing the steady progression of bubbles from the specimen and how the specimen expands and restores to its original shape after vacuum release. Test Standards: This test instrument conforms to many national and international standards: ASTM D5094, ASTM D6653, GB/T 15171, GB/T 27728, YB00112002-2015, YBB00122002-2015, YBB00262002-2015. Applications: Basic Applications - Glass Bottles, Pipes, Cans and Boxes - Plastic Bottles, Pipes, Cans and Boxes - Metal Bottles, Pipes, Cans and Boxes - Paper Plastic Composite Bags and Boxes Extended Applications - Pen Refills - Electronic Components - Medical Instruments Technical Specifications: - Vacuum Degree: 0 ~ -90 kPa - Accuracy: 0.5% FS - Generation Mode of Negative Pressure: Vacuum generator - Effective Size of Vacuum Chamber: Φ270 mm x 210 mm (H) (Standard) - Note: customization is available for other sizes - Air Pressure: 0.4 ~ 0.6 MPa (outside of supply scope) - Port Size: Ф6 mm PU Tubing - Instrument Dimension: 300mm(L) x 380mm(B) x 165mm(H) - Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) - Net Weight: 10 kg Configurations: Instrument, Micro Printer, Vacuum Chamber, Professional software, 485 Communication Cable, Electronic Signature Pad, Voice Prompt Function 1. The gas supply port of the instrument is Φ6 mm PU Tubing; 2. Customers will need to prepare for gas supply. Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
