Laser cutting machine SF3015HMSSfor aluminumfor titanium
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for aluminum, SS, for carbon steel, for brass, for titanium
- Product handled
- tube, sheet
- Applications
- for the automotive industry, for aeronautical applications
- Workpiece loading
- automated loading/unloading
- Configuration
- double table
- Other characteristics
- CE, high-efficiency, fully-enclosed, FDA, with exchange table
- X travel
3,050 mm, 4,050 mm, 6,050 mm
(120.08 in, 159.45 in, 238.19 in)- Y travel
1,530 mm, 2,030 mm, 2,530 mm
(60.24 in, 79.92 in, 99.61 in)- Cutting speed
130 m/min
- Laser power
Max.: 6,000 W
Min.: 1,500 W
- Repeatability
0.05 mm
(0.002 in)- Acceleration
9.81 m/s²
(32.19 ft/s²)- Overall length
8,330 mm
(328 in)- Maximum width
3,910 mm
(154 in)- Height
2,260 mm
(89 in)
Description
Product overview

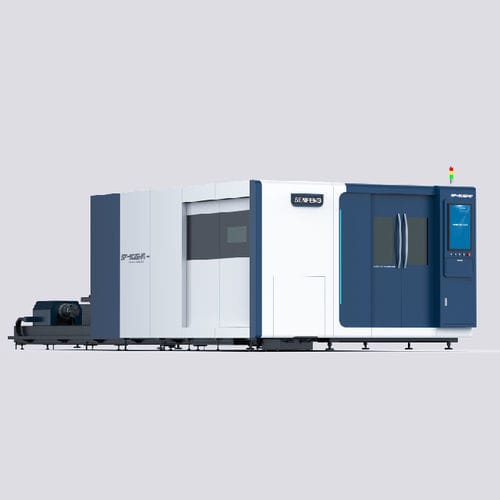

SENFENG SF3015HM is a precise metal laser cutting system engineered for both sheet and tube processing. The machine uses a robust mechanical structure and industrial-grade electrical components to provide stable long-term operation and reduced downtime. Typical applications include metalworking, machinery manufacturing, automotive and aerospace sectors.
Key features
Parameters
Model: SF3015HM
Laser power: 1.5 kW – 6 kW
Work area options: 3050×1530 / 4050×2030 / 6050×1530 / 6050×2030 / 6050×2530 mm
Positioning accuracy: ±0.05 mm
Max cutting speed: 130 m/min
Max acceleration: 1.0 G
Machine outline size: 8330×3910×2260 mm
Materials (cutting capability)
CUTTING
Stainless steel: √
Carbon steel: √
Aluminum: √
Brass: √
Galvanized sheet: √
Titanium alloy: √
Electrolytic sheet: √
Technical specifications
SENFENG SF3015HM is a precise metal laser cutting system engineered for both sheet and tube processing. The machine uses a robust mechanical structure and industrial-grade electrical components to provide stable long-term operation and reduced downtime. Typical applications include metalworking, machinery manufacturing, automotive and aerospace sectors.
Key features
- Dual-purpose: sheet and tube cutting in one machine
- High processing versatility and efficiency
- High-standard chuck for reliable tube clamping
- Fast exchange dual worktable for continuous cutting with simultaneous loading/unloading
- Full-enclosed structure for operator safety
- Compliant with CE, RoHS and FDA standards
Parameters
Model: SF3015HM
Laser power: 1.5 kW – 6 kW
Work area options: 3050×1530 / 4050×2030 / 6050×1530 / 6050×2030 / 6050×2530 mm
Positioning accuracy: ±0.05 mm
Max cutting speed: 130 m/min
Max acceleration: 1.0 G
Machine outline size: 8330×3910×2260 mm
Materials (cutting capability)
CUTTING
Stainless steel: √
Carbon steel: √
Aluminum: √
Brass: √
Galvanized sheet: √
Titanium alloy: √
Electrolytic sheet: √
Technical specifications
- Model: SF3015HM
- Laser power range: 1.5 kW – 6 kW
- Available work areas: 3050×1530, 4050×2030, 6050×1530, 6050×2030, 6050×2530 mm
- Positioning accuracy: ±0.05 mm
- Max cutting speed: 130 m/min
- Max acceleration: 1.0 G
- Machine dimensions: 8330×3910×2260 mm
- Dual-purpose design: sheet and tube cutting
- Fast exchange dual worktable for continuous operation and reduced idle time
- Full-enclosed structure for operator safety
