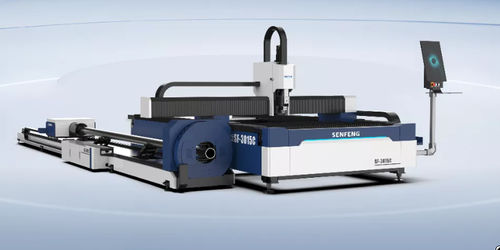

Laser cutting machine 3015C

for metaltubesheet

Overview
The 3015C is a dual-purpose sheet and tube laser cutting machine designed to combine both functions in a single footprint. It suits small workshops and start-ups that require flexible production of flat parts and tubular components with reduced initial investment and floor space.

One machine with two functions

• Combined sheet and tube workflow to save production space
• Lower capital expenditure compared with separate machines

Three self-developed core components

• SF-Mimir LT — intelligent CNC control system for nested cutting and tube programs
• SF-PowerPlus — compact laser generator with stable output (1.5–6 kW)
• SF-TYRFING — autofocus cutting head for consistent piercing and edge quality

Tube handling and material utilization
The pneumatic self-centering chuck ensures accurate clamping of various tube profiles, minimizing tailing and material waste.

• Max tube diameter: Ø 220 mm
• Max tube length: 6000 mm

Dynamic performance and structure
Aluminium alloy beam with stress relief and vibration aging provides stable dynamic behavior and long-term positioning accuracy. High traverse speed and rapid acceleration reduce cycle times.

• Max no-load speed: 100 m/min
• Max acceleration: 1G

Open-style access
Front, rear and side access simplifies loading and unloading of sheets and tubes and allows operators to monitor the cutting process for faster troubleshooting and reduced downtime.

Application industries
3015C is optimized for thin-sheet cutting (≤ 20 mm) and small-to-medium tubes (max Ø 220 mm). Typical applications: household appliances, kitchenware, sanitaryware, cabinets and enclosures, signage, elevator components and related industries.

Technical parameters
Model: 3015C
Working area (mm): 3050 × 1530
Laser power (kW): 1.5–6
Max no-load speed (m/min): 100
X/Y-axis positioning accuracy (mm): ±0.05
X/Y-axis repositioning accuracy (mm): ±0.02
Overall dimensions (L×W×H, mm): 8500 × 3740 × 2100

Key specifications

• Model: 3015C
• Working area: 3050 × 1530 mm
• Laser power range: 1.5–6 kW
• Max no-load speed: 100 m/min
• X/Y positioning accuracy: ±0.05 mm
• X/Y repositioning accuracy: ±0.02 mm
• Tube capacity: max Ø 220 mm, max length 6000 mm
• Overall dimensions: 8500 × 3740 × 2100 mm
