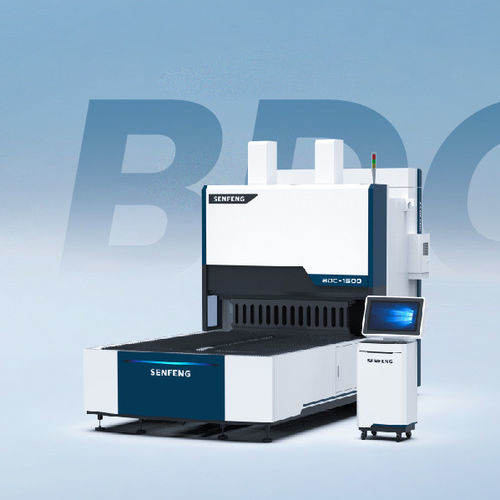

Electric plate bending machine BDC-1500

CNCautomaticfor metal fabrication

Product Overview
This automatic bending machine by Senfeng Laser is engineered for high-consistency bending of thin sheets. It combines vacuum suction handling and multi-axis CNC control to deliver fast, repeatable batch production with minimal part-to-part variation.

Key Features

• Fully automatic bending process — no handheld bending required.
• Suction-cup loading system: vacuum cups pick up and rotate sheets 360°; dual guide rails ensure accurate positioning; soft brushes protect sheet surfaces. Optimized for light and thin sheets.
• Universal bending tools made from high-strength alloy/die steel with forging, tempering and quenching for high wear resistance and long tool life.
• Automatic bending for right, acute and obtuse angles and complex geometries: arc, blankholder, hollow square and enclosed types; supports up/down and level-up bending.
• High productivity: typical bend cycle around 0.5 s (fast cycle); significantly higher throughput compared with standard CNC press brakes.
• User-friendly control: Linux-based CNC with HD display and EtherCAT; graphical visual programming and multiple preloaded bending procedures.

Highlights

• Minimal frequent changes of upper and lower bending tools.
• Simple graphical programming and presets — no prior bending experience required for common tasks.
• Durable construction designed for stable batch production and long service life.
• Capable of forming a wide range of shapes with high repeatability.

Operation & Control
The system integrates vacuum sheet handling, automatic positioning and a CNC graphical interface with preloaded procedures to enable rapid setup and repeatable production for batch jobs.

Technical specifications

• Model: BDC-1200; BDC-1500
• Maximum bending length: 1200 mm (BDC-1200) / 1500 mm (BDC-1500)
• Maximum bending height: 170 mm
• Maximum thickness (standard tools): 201 stainless steel 0.8 mm; Cold plate 1.0 mm; AL sheet 1.3 mm
• Minimum thickness: 0.35 mm
• Rated voltage: 380 V
• Number of axes: 10
• Fastest bend speed: 0.2 s / bend
• Dimensions: BDC-1200: 3700 × 1800 × 2450 mm; BDC-1500: 4000 × 2000 × 2550 mm
• Gross mass: BDC-1200: 9 T; BDC-1500: 12 T
• Support for feeding of hollowed-out plates: No
