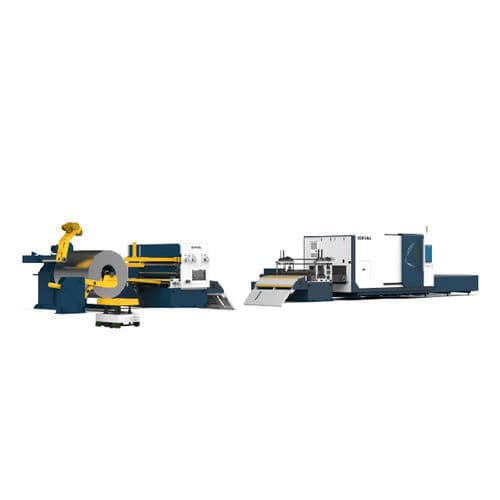

Fiber laser cutting machine SF1503CHfor aluminumfor thin sheet metalcoil
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for aluminum
- Product handled
- for thin sheet metal, coil
- Workpiece loading
- with automated loading
- Phase
- three-phase
- Configuration
- large-format
- Other characteristics
- automatic, high-precision, with automatic feeder, coil-fed
- X travel
3,000 mm
(118.11 in)- Y travel
1,500 mm
(59.06 in)- Maximum cutting height
3 mm
(0.1 in)- Laser power
Min.: 1,500 W
Max.: 6,000 W
- Repeatability
0.02 mm
(0.0008 in)- Overall length
3,000 mm
(118 in)- Maximum width
1,500 mm
(59 in)- Power supply
380 V
- Load capacity
10 t
(11 us ton)
Description
Overview
SENFENG fiber laser blanking system integrates a fiber laser cutting machine with an automatic metal coil feeding, decoiling and leveling line to deliver an efficient coil-fed laser cutting solution. Compared with press lines, laser blanking reduces energy consumption and increases process flexibility. The automated sequence from loading and uncoiling to leveling and cutting reduces labor, enables net cutting from coil stock and improves material utilization.
Application industries
Key process / components
Technical specifications
SENFENG fiber laser blanking system integrates a fiber laser cutting machine with an automatic metal coil feeding, decoiling and leveling line to deliver an efficient coil-fed laser cutting solution. Compared with press lines, laser blanking reduces energy consumption and increases process flexibility. The automated sequence from loading and uncoiling to leveling and cutting reduces labor, enables net cutting from coil stock and improves material utilization.
Application industries
- Aluminium panel manufacturing
- Kitchenware production
- Door manufacturing
- Appliance and cabinet industry
- Automotive components manufacturing
- Construction machinery industry
Key process / components
- Integrated decoiling and leveling unit for continuous coil feeding
- Fiber laser cutting unit (1.5–6 kW options)
- Automatic feeding and positioning system for continuous blanking
- High-precision X/Y motion system for accurate positioning and cutting
Technical specifications
- Model: SF1503CH
- Supported coil/sheet size (L×W×T): up to 3000 × 1500 × 3 mm
- Standard coil inner diameter: Φ508 mm
- Maximum coil outer diameter: Φ1400 mm
- Maximum coil weight: 10 t
- Max feeding speed: 10 m/min
- Leveling accuracy: ±2 mm/m²
- Laser power range: 1.5–6 kW
- Working area: 3000 × 1500 mm
- X/Y positioning accuracy: ±0.05 mm
- X/Y repositioning accuracy: ±0.02 mm
- Power supply: Three-phase 380V, 50Hz/60Hz (custom-made)
Catalogs
No catalogs are available for this product.
See all of Jinan Senfeng Laser Technology Co. Ltd.‘s catalogsOther Jinan Senfeng Laser Technology Co. Ltd. products

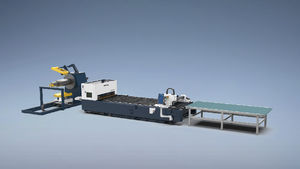

Coil Fed Laser Cutting Machine
