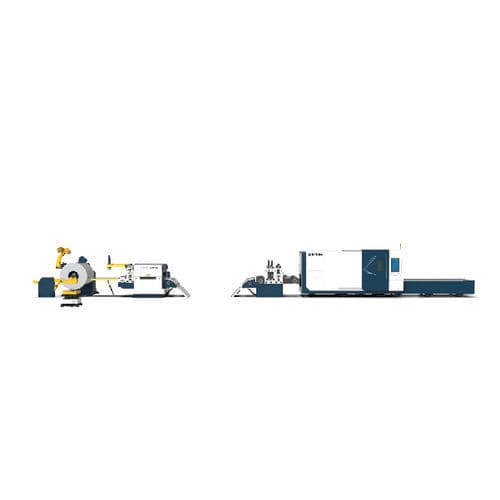

Laser cutting machine SF1503CLH

for aluminumcoilsheet

Overview
Designed for continuous coil-to-sheet processing of aluminum, the SF1503CLH combines a decoiler, an aluminum-specific straightener, a laser cutting head and an integrated feeding system. The machine flattens aluminum coils into sheets suitable for immediate laser cutting without intermediate handling. Optional modules (laminating, spraying) and MES connectivity are available to extend the production line.

Key advantages

• Dedicated straightener engineered for aluminum coils to ensure flatness before cutting.
• Modular configuration: units can be combined to form a continuous production chain from coil to finished parts.
• Open control architecture enabling integration with MES for automated workflow management.

Technical Parameters (summary)
Model: SF1503CLH

Decoiling and Leveling Unit:

• Sheet coil size (L×W, mm): 3000×1500
• Sheet coil thickness (mm): 0.6–3
• Standard inner diameter (mm): Φ508
• Max outer diameter (mm): Φ1400
• Coil weight (t): 10
• Max feeding speed (m/min): 10
• Leveling accuracy (mm/m²): ±1.5

Laser Cutting Machine

• Laser power (kW): 6
• X/Y-axis positioning accuracy (mm): ±0.05
• X/Y-axis repositioning accuracy (mm): ±0.02

Power Supply

• Three-phase 380V, 50Hz/60Hz (custom-made)

Specifications

• Model: SF1503CLH
• Decoiling and Leveling Unit — Sheet coil size (L×W, mm): 3000×1500
• Decoiling and Leveling Unit — Sheet coil thickness (mm): 0.6–3
• Decoiling and Leveling Unit — Standard inner diameter (mm): Φ508
• Decoiling and Leveling Unit — Max outer diameter (mm): Φ1400
• Decoiling and Leveling Unit — Coil weight (t): 10
• Decoiling and Leveling Unit — Max feeding speed (m/min): 10
• Decoiling and Leveling Unit — Leveling accuracy (mm/m²): ±1.5
• Laser Cutting Machine — Laser power (kW): 6
• Laser Cutting Machine — X/Y-axis positioning accuracy (mm): ±0.05
• Laser Cutting Machine — X/Y-axis repositioning accuracy (mm): ±0.02
• Power supply: Three-phase 380V, 50Hz/60Hz (custom-made)
