Applications:

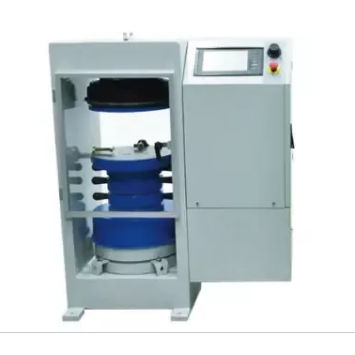

This sériés compression testing machine is mainly designed for compression test of building material items, such as concrète cube, concrète blocks, cernent specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of métal. With new design idea and advanced technology, this sériés hâve more advantages in appearance, operation & applications. It is the idéal test equipment for quality control at industry & minerai enterprises, éducation in high schools, and technology researches at scientific institutes.
Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, IS07500-1, EN10002-2, BS 1610, DIN51220, C1231 -AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
Applicable Specimen size:
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more; Rectangular sample: 400x200x200mm, 400x200x400mm etc; Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
Remark: test space & compression platen can be customized according to specified specimen size.
Max. Load (kN) : 2000 : 3000
Load measuring range : 2.5-100% of F.S. :
Load accuracy : ±1.0% :
The roughness value for texture of loading and auxiliary platens : < 3.2pm :
Upper compression platen (mm) :
